AtlasVISORFF
Request a demo
ITAR-free thermal payload

AtlasVISORFF

Made in the EU. Sensitive to 60 mK.

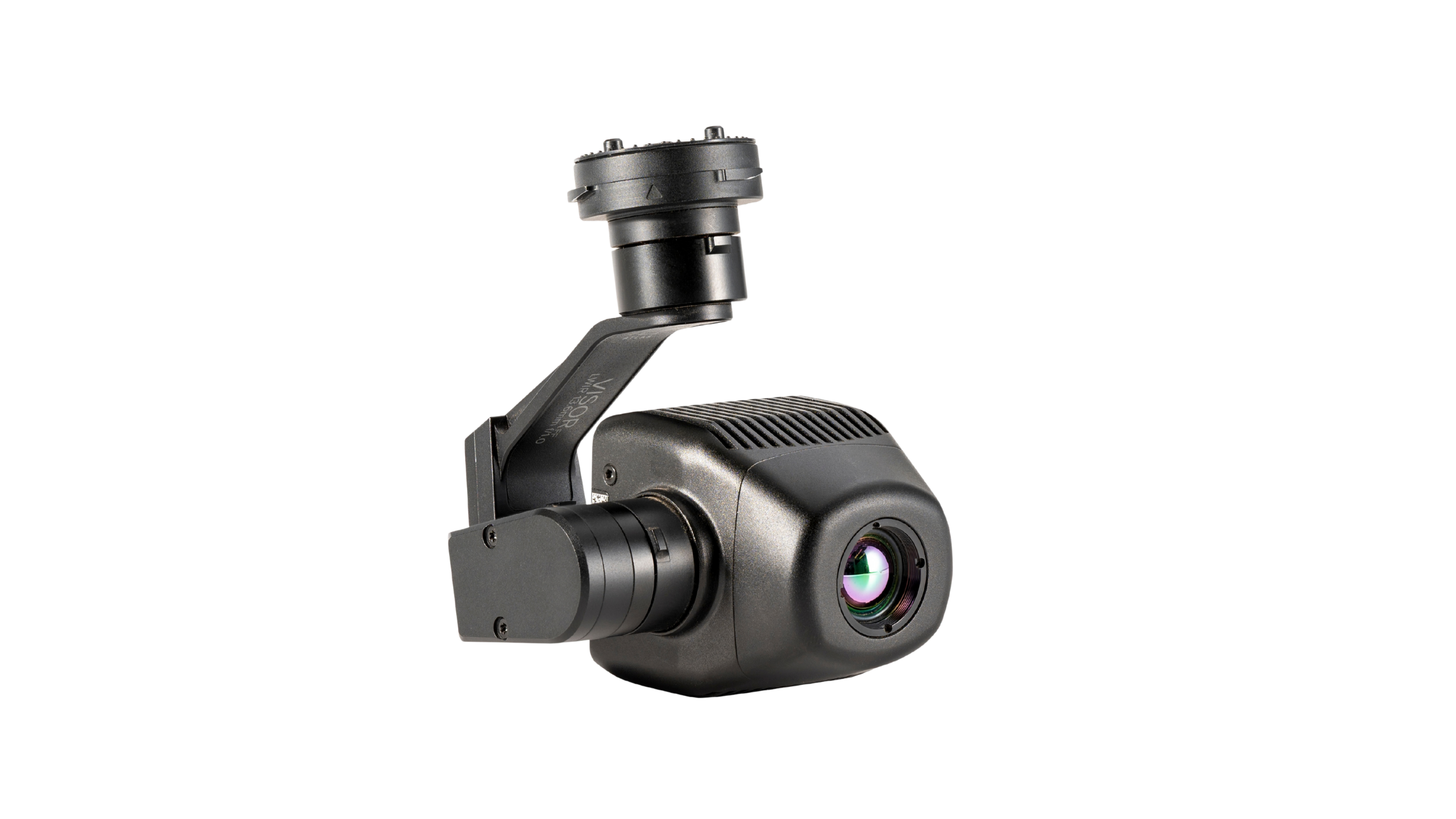

AtlasVISORFF thermal payload
60 mK
Sensitivity (NETD)
640 × 480
At 30 fps
f/1.0
13 mm lens
ITAR-free
Made in EU
271 g
Incl. gimbal

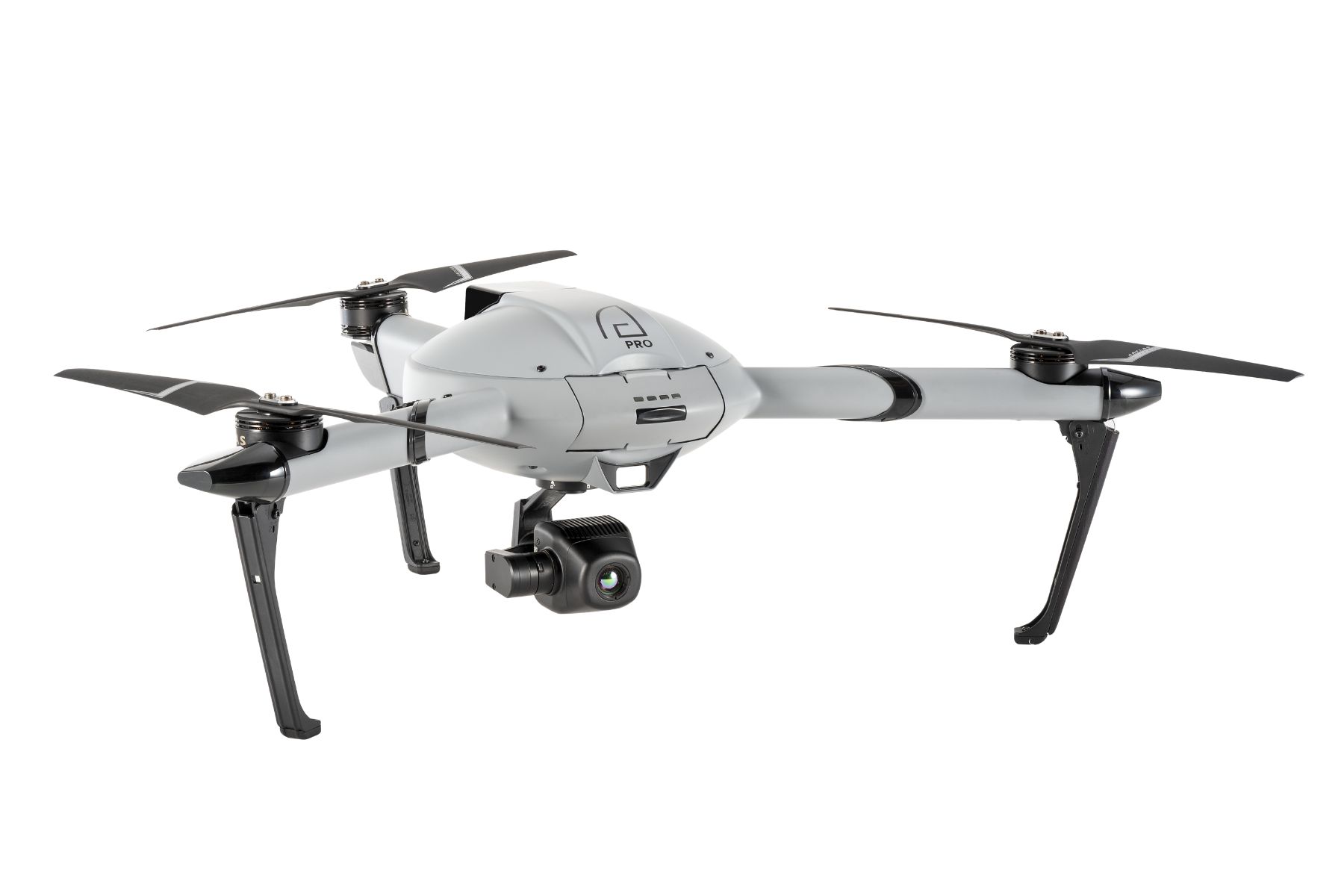

AtlasVISORFF on AtlasPRO
02Thermal imaging

Accurate heat, anywhere.

A high-quality f/1.0 lens and an exceptionally sensitive LWIR sensor deliver accurate temperature measurement, day or night.

Resolution640 × 480 at 30 fps
NETD60 mK
Field of view32° × 24°, 10× digital zoom
AtlasVISORFF made in the EU
03ITAR-free

Made in Europe. Free to export.

Built for Atlas UAVs and produced in the European Union, so it is free of ITAR restrictions.

OriginEuropean Union
ExportITAR-free
Spectral rangeLWIR 8–14 μm
Atlas Thermal Player
04Analysis

Analyse after the flight.

Radiometric recordings open in Atlas Thermal Player, with multiple colour palettes and encrypted, STANAG 4609 compliant data.

RecordingRadiometric
PalettesWhite-hot, black-hot, rainbow and more
EncryptionAES-256
05Built for the field

Works from −40 °C.

Mount
Detachable, plug and play
Ingress protection
Designed as IP44
Operating temperature
−40 °C to +55 °C
Platform
AtlasPRO
06Specifications

Key specifications

From the current website — to be confirmed against the latest datasheet
640 × 480
Thermal resolution, 30 fps
60 mK
Thermal sensitivity (NETD)
13 mm f/1.0
Lens
Radiometric
Recording
271 g
Weight incl. gimbal
−40 to +55 °C
Operating temperature

Want to understand if AtlasVISORFF is the perfect fit for your requirements?

Our team will walk you through the full specification and match it to your mission.

Contact us

All product specifications are subject to change without notice.
