AtlasKALOS
Request a demo
4K zoom camera payload

AtlasKALOS

Ultra HD detail. 12× hybrid zoom.

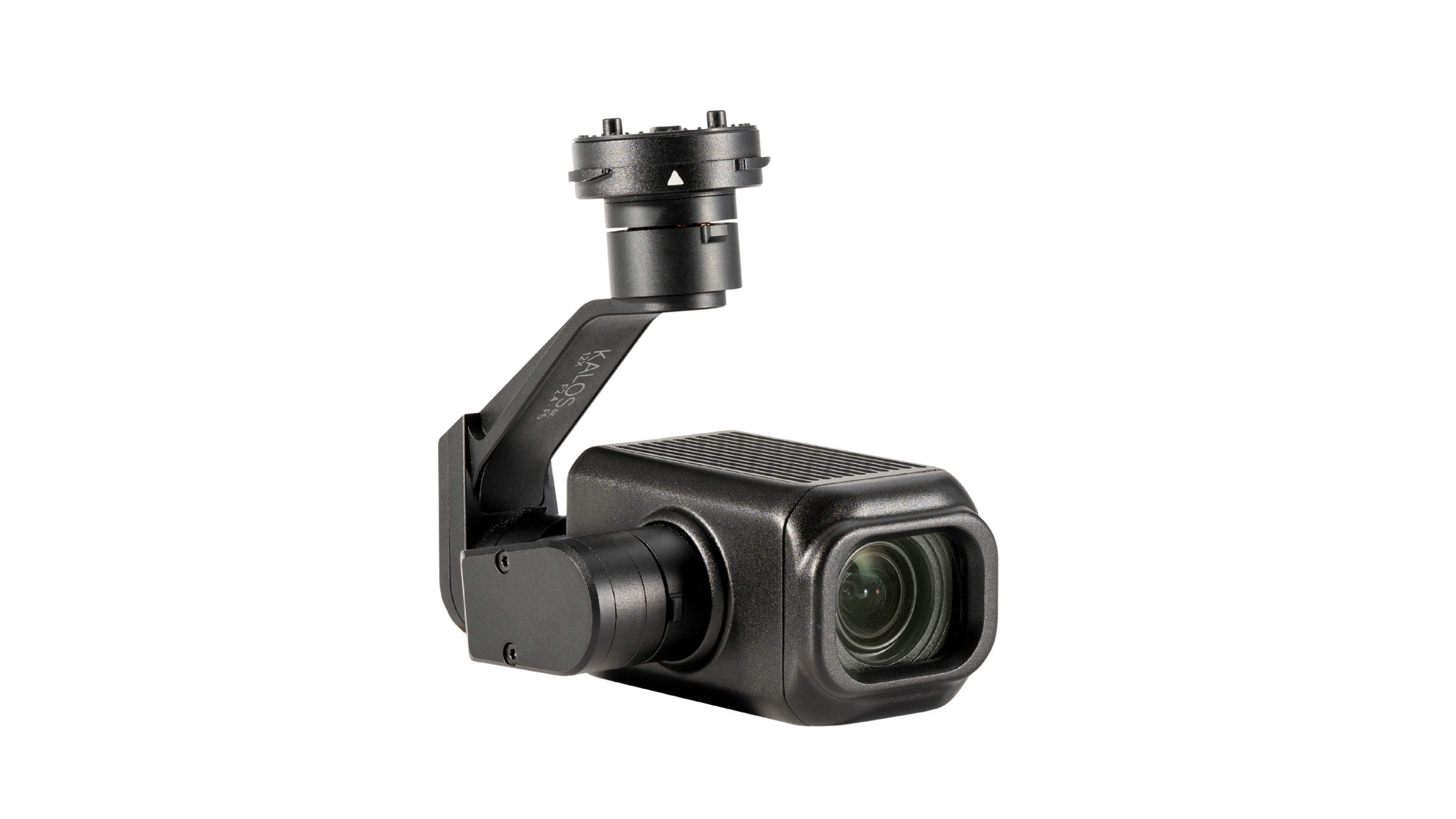

AtlasKALOS camera payload
4K
Video at 30 fps
3×
Optical zoom
12×
Hybrid zoom
AES-256
Onboard encryption
199 g
Incl. gimbal

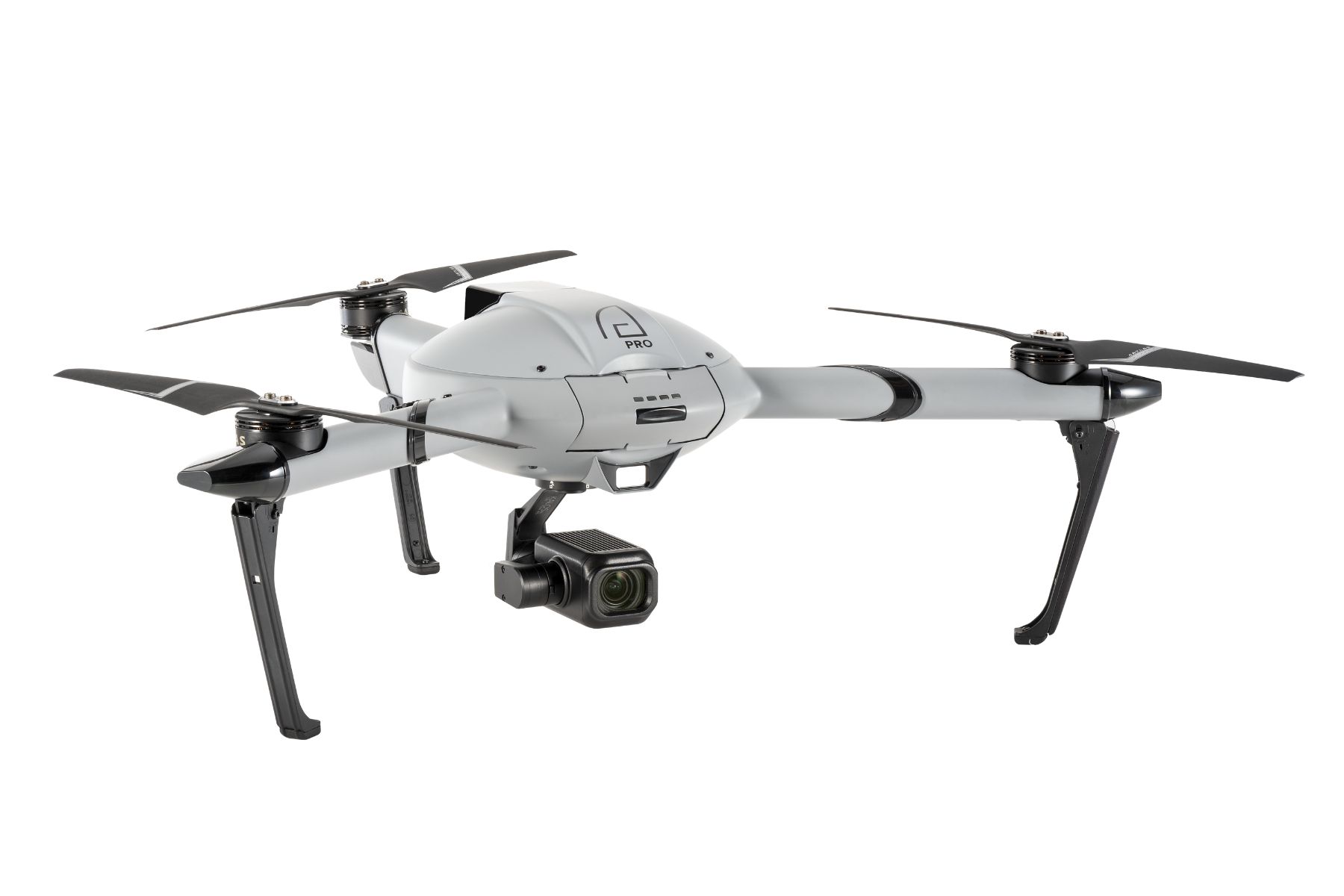

AtlasKALOS on AtlasPRO
02Imaging

More detail, even in low light.

A 12.7 MP 1/2.3″ CMOS sensor records sharp 4K video and stills for inspection, mapping and surveillance.

SensorCMOS 1/2.3″ 12.71 MP
Video3840 × 2160 at 30 fps
EncodingH.264 / H.265

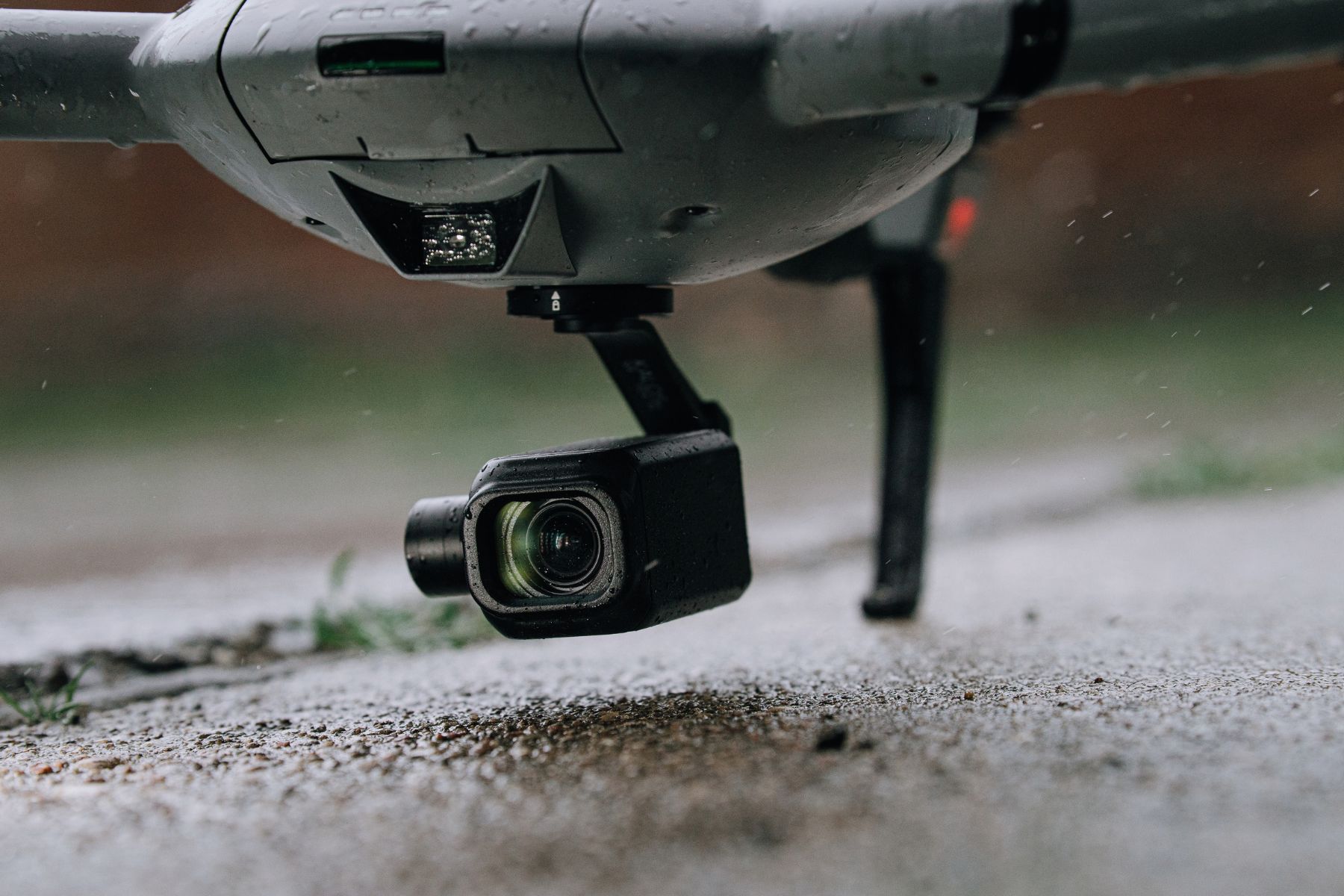

AtlasKALOS zoom
03Zoom

Get closer without flying closer.

3× optical and 12× hybrid zoom let the operator inspect details from a safe distance.

Zoom3× optical, 4× digital, 12× hybrid
Lens3.85–13.4 mm, f/2.4–5
Field of view78.6° to 25.9° horizontal
AtlasKALOS encrypted recording
04Data security

Every frame encrypted.

Recordings are encrypted onboard with AES-256 and carry STANAG 4609 metadata, ready to stream or analyse.

EncryptionAES-256
MetadataSTANAG 4609, EXIF
FormatsMP4, MPEG2-TS, RTSP, JPEG
05Built for the field

Swap it in seconds.

Mount
Detachable, plug and play
Ingress protection
Designed as IP44
Operating temperature
−20 °C to +50 °C
Platform
AtlasPRO
06Specifications

Key specifications

From the current website — to be confirmed against the latest datasheet
4K at 30 fps
Video
12× hybrid
Zoom (3× optical)
12.71 MP
Image sensor
199 g
Weight incl. gimbal
AES-256
Encrypted recording
IP44
Ingress protection (designed as)

Want to understand if AtlasKALOS is the perfect fit for your requirements?

Our team will walk you through the full specification and match it to your mission.

Contact us

All product specifications are subject to change without notice.

07Datasheet and brochure

See AtlasKALOS in action

Book a live demonstration or talk to our team about pricing and availability.
