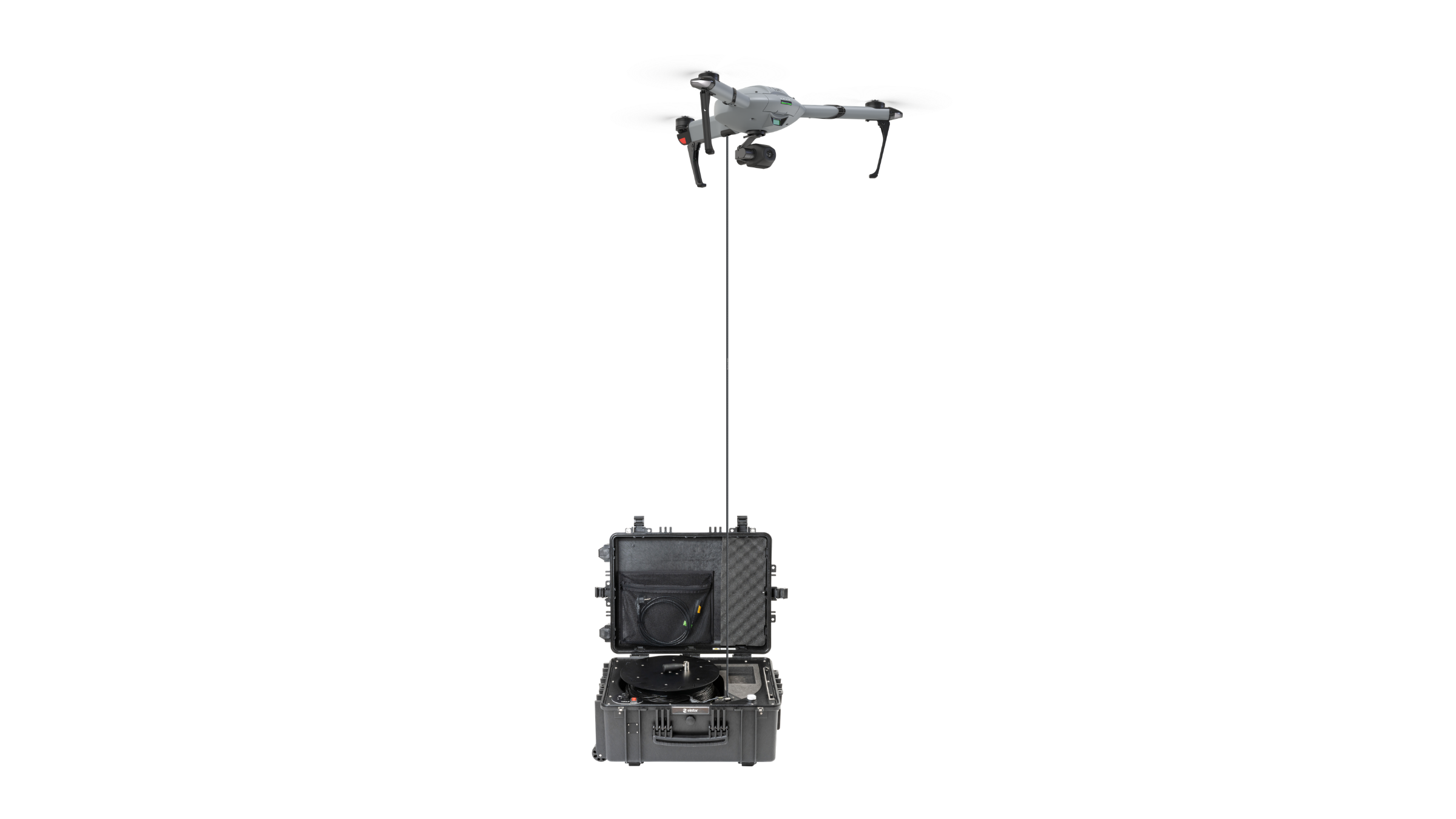

The ground station feeds up to 1000 W through a light, strong 70 m tether, so the aircraft can stay on station for as long as the mission needs — powered from mains, a generator or batteries.
Input voltage220 VAC (±10 %), 50 Hz
Max continuous powerUp to 1000 W
Tether70 m, 3 mm, 10 g/m, 150 daN
Cable torque1–6 N, adjustable
03Data link
Wired. Fast. Unjammable.
Data runs over the power line itself: 100 Mbit/s with sub-millisecond latency and no radio link to jam, delivered to an RJ45 socket on the ground station.
Data channelEthernet over power line
Bandwidth100 Mbit/s
Latency0.55 ms
04Safety
Plug and play. Fail-safe.

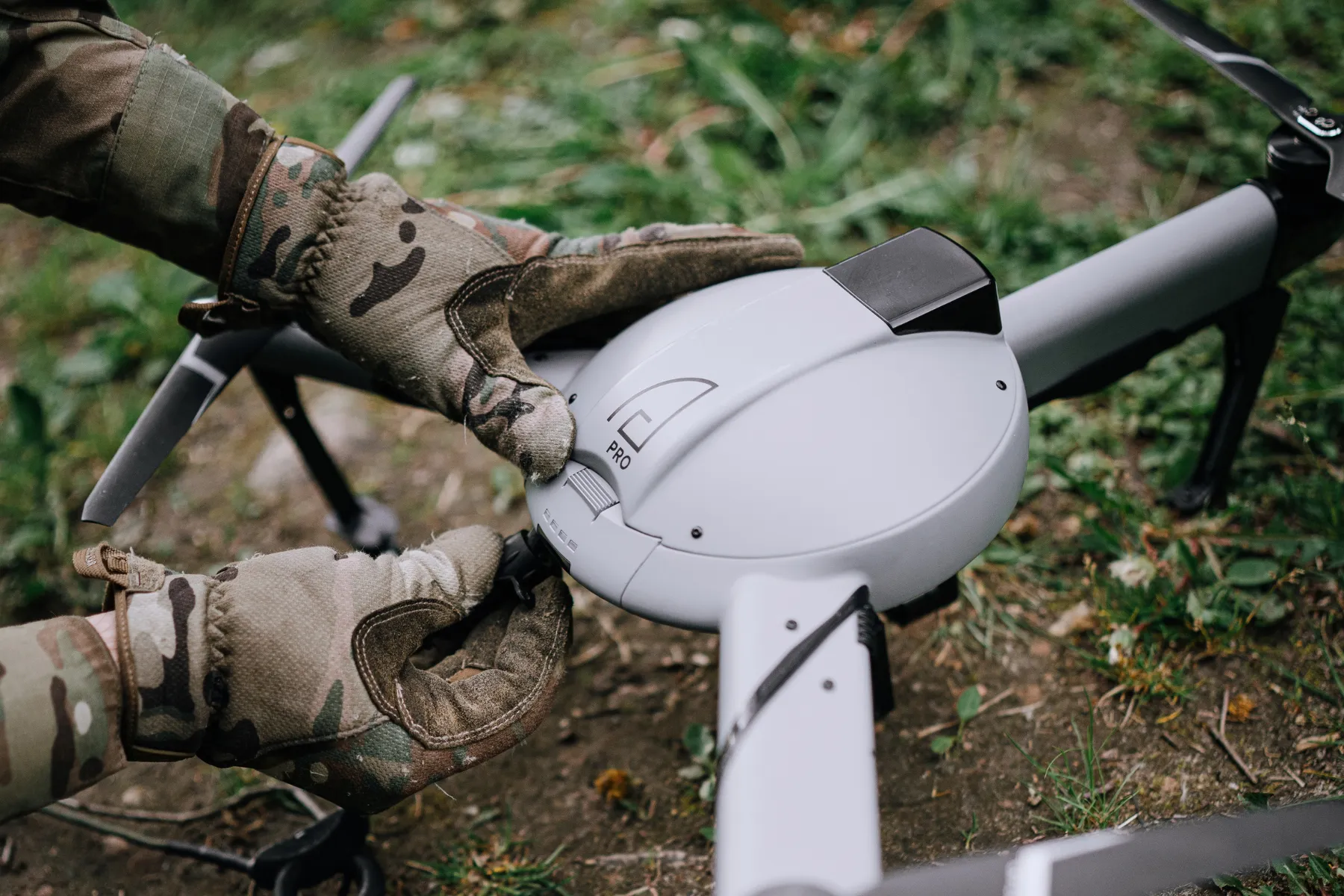

AtlasAPP recognises the tether automatically and limits vertical speed and distance. If ground power is lost, a 90-second emergency battery lands the aircraft safely.
Plug-and-playAtlasAPP automated tether mode
Emergency battery90 s, automated landing
05Built for the field
Deploy anywhere there is power.
Max altitude
70 m
Continuous power
Up to 1000 W
Operating temperature
−15 °C to +40 °C
Ground station
20.1 kg, designed as IP41
06Specifications
Key specifications
Full specifications in the datasheet
70 m
Max tethered altitude
100 Mbit/s
Data over the tether
0.55 ms
Link latency
150 daN
Tether tensile strength
390 g
Air module weight
−15 to +40 °C
Operating temperature
Want to understand if AtlasTETHER is the perfect fit for your requirements?
Our team will walk you through the full specification and match it to your mission.
