AtlasPRO

AltasPRO is a lightweight tri-copter unmanned system. Its compact design makes it man-packable, and is intended for use in nearly all weather conditions. Its communications are hardened, encrypted, and allow for nearly 10 mile BVLOS missions. With 32 minutes of battery endurance and three minute setup, the AtlasPRO is an airframe suitable for most missions.

The AtlasPRO's unique design has won the Red Dot Design Award, the Edison Awards, and the Good Design Awards. It has been highlighted for its premium materials, aerodynamic shape, and outstanding specifications.

Specifications
Top Features
Resources
AIRCRAFT
Aircraft Dimensions (excluding propellers)
Folded:
417 x 323.5 x 115.5 mm
Unfolded: 445 x 557.5 x 185.5 mm
Weight (excluding battery and payload): 1050 g
Weight (with battery, excluding payload): 1585 g
Max Takeoff Weight: 1900 g
Max Payload: 315 g
Operating Temperature Range (optional): -20°C to +55°C (-30°C +50°C)
Storage Temperature Range: -20°C to 45°C up to 3 months; 25 +/-3°C more than 3 months
Ingress Protection Rating: IP44 certified
Operating Frequency: 2.4 - 2.4835 GHz; 2.2 - 2.7 GHz
RF Output Power: 30 dBm
Antenna Gain: 3 dBi
GNSS: GPS + GLONASS + Galileo
Hovering Accuracy (GPS mode): 0.5 m - 2.5 m
Downward Facing Rangefinder: ToF LIDAR
Field of View: +/- 1.7 degree conical beam
Obstacle Sensing Range: 20 m
Noise Level: 56 dBa at 15 m
Max Tilt Angle: 45 degrees
Max Ascent Speed: 5 m/s
Max Descent Speed: Variable, 1.5 - 3.5 m/s
Max Control Speed: 56 km/h
Max Speed (with payload)
Standard props:
56 km/h
Quiet props: 46 km/h
Max Wind Resistance: 15.5 m/s (56 km/h)
Max Flight Time (with payload)*: 32 min
Max Flight Distance: 16 km
Max Service Ceiling Above Sea Level: 3000 m
Propeller Model
Standard props: Length: 30.5 cm. Weight: 12.2 g
Quiet props: Length: 33.2 cm. Weight: 15.8 g
Supported PayloadsEO
(RGB): KALOS 120, ARGUS M20
IR: VISOR NX, VISOR FF
SMART BATTERY
Capacity: 8000 mAh
Nominal voltage: 15.2 V
Max Charging Voltage: 17.6 V
Battery Type: Li-ION 4S
Energy: 121.6 Wh
Net weight: 588 g
Operating Temperature Range (optional): -20°C to +55°C (-30°C +50°C)
Storage Temperature Range: -20°C to 45°C up to 3 months; 25 +/-3°C more than 3 months
Charging Temperature Range (using heater): -20°C to 40°C
Max. Charging Power: 100 W
Heating time: 15 minutes at -20 °C; 10 minutes at -10 °C; 5 minutes at 0 °C
Heating Power: 50W
Certification:
• UN38.3
• UL1642
• PI965
• PI966

*Flight time might be affected by environmental conditions
NEST
Compatible
MESH
Operations
ON-BOARD
Encryption
Radiometric
10X Optical
Encryption
Frequency- hooping
MESH

AtlasPRO Specification
DOWNLOAD
Log File Download Tool
DOWNLOAD
Firmware Update Tool
DOWNLOAD
CRYFI Decryption Tool
DOWNLOAD

Flight Performance

max. flight time

32 min

ascent speed

5 m/s

max. service ceiling

3000 m

wind resistance

15.5 m/s

descent speed

3.5 m/s

max. speed up to

56 km/h

MESH Technology

AtlasMESH is a networking system that allows a single operator to operate numerous drones at the same time. Deploy, operate, and use many UAVs using a single control station without the need for extra hardware.

BVLOS Missions

Signal is relayed by a secondary UAV that flies behind challenging barriers where the signal is typically lost.

UAV Hot-Swap Functionality

In circumstances when continuous monitoring is required, replace a depleted UAV with a fully charged one without interrupting the video stream.

Share Mission Data

On a mesh network, share critical mission information such as coordinates or a video feed with other devices.

Advanced Missions

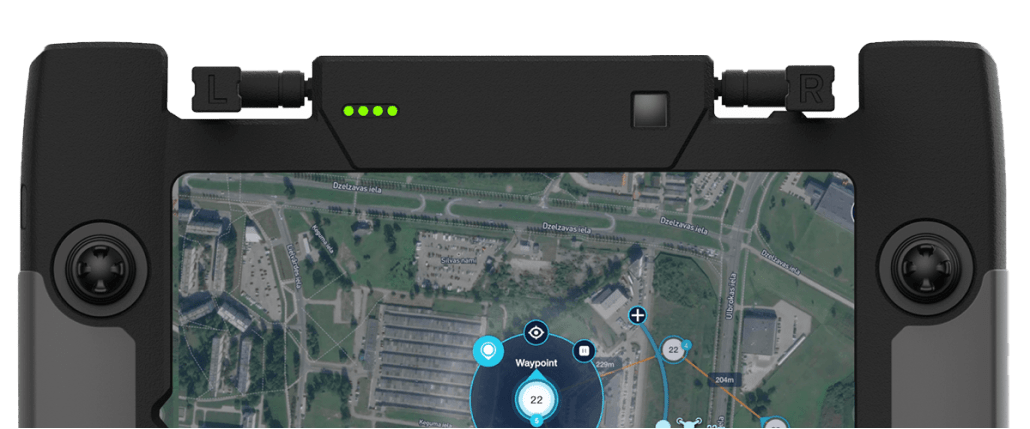

The AtlasSTATION is a touchscreen tablet, which can be used to control AtlasPRO from anywhere within range. Seamlessly create missions, set routes and operate a drone(s) at a distance. AtlasSTATION's interface also provides for data management, video streaming, and integration with third-party systems.

advanced waypoints
point of interest
target orbit
grid mapping
EMI countermeasures
dynamic landing point
LEARN MORE

Payload Options

VISOR FF

High-sensitivity (60mK) thermal camera, imaging at 640x480, 30 FPS. Noise reduction technology and Accurate temperature measurements ideal for analytics and telemetry. STANAG 4609, 256BIT AES Encryption, RAW thermal format, and RJPG.

LEARN MORE

VISOR NX

Thermal camera with high sensitivity (50mK), imaging at 640x512 or 336x240 with 30FPS or 9FPS. With any light situation, accurate temperature measurements are suitable for analytics and telemetry. STANAG 4609, 256BIT AES Encryption, RAW thermal format, and RJPG.

LEARN MORE

ARGUS M20

A small aerial camera with a 10x optical zoom and a 2x digital zoom. With an extremely high-quality sensor, 1920x1080 resolution, 60fps, and 11Mbps, the Argus M10 provides unrivalled picture data collection. STANAG 4609 and 256BIT AES Encryption.

LEARN MORE

KALOS 120

4K ultra-high-definition camera with 12.7MP 1/2.3" CMOS sensor and 3.5x optical zoom (21.5 - 75mm). Even in low light, record movies and shoot stills with better clarity and sharpness. STANAG 4609 and 256BIT AES Encryption.

LEARN MORE
