AtlasSTATION

A touchscreen tablet that is used to control the AtlasPRO from anywhere. Create missions, set routes, and operate a drone(s) from afar with the AtlasSTATION.

The AtlasSTATION is a touchscreen tablet, which can be used to control AtlasPRO from anywhere within range. Seamlessly create missions, set routes and operate a drone(s) on a distance. AtlasSTATION's interface also provides for data management, video streaming, and integration with third-party systems.

Freq. range (GHZ)

2.2 -2.7

Battery up to

5 h

Range up to

10 km

weather resistance

IP44

Specifications
Top Features
Resources
AtlasSTATION
Dimensions: 287.2 x 230.6 x 35.9 mm
Screen: 11-inch, 2388 x 1668 at 264 ppi,  Multi-Touch
Controls: Multi-Touch screen
Operating Frequency: 2.2 - 2.7 GHz
Transmit Power: Up to 1W (30dBm)
Data Encryption: WPA3 SAE (CCMP)
Antenna: 5 dBi, 2x2 MIMO
Max Transmitting Distance (unobstructed, free of interference): Up to 10 km LOS
Wireless Connection: 802.11 a/b/g/n, 5 GHz, 150 mbit/s, WPA2
Wired Connection: 1 x 100 Base-T Ethernet port (RJ-45), supports passive PoE
I/O Ports: 1 x RJ45, 1 x HDMI (TYPE A), 1 x USB (TYPE A) 2 x SMA female
Ingress Protection Rating: IP44
Charger: Charging device 100-240V 50-60Hz,. DC Barrel Jack 14-30V, 50W max
Battery: 10000 mAh 3.7V (37Wh) lithium-polymer battery
Operating Temperature Range (optional): -20°C to +55°C (-30°C +50°C)
Storage Temperature: -20°C to 45°C up to 3 months 25 +/-3°C more than 3 months
Built-in Heater: Up to 50 W of heat
Cooling: Active
Battery Life: 5 hours
Supported Aircraft Models: AtlasPRO
Weight: 1734 g

Video and Control Transmission System: Mesh V2.0
Live View Quality: Up to HD 1080i
Latency (depending on environmental condition): 200 ms

All product specifications are subject to change without notice
Mesh
Compatible
Built-in heating
& COOLING
USB3.0
ETH
HDMI
Up to 10km range
waterproof
STANAG 4609 Compliant
AtlasSTATION Specification
DOWNLOAD

AtlasSTATION PRO

With a larger 11" screen and physical joysticks, our newest AtlasSTATION PRO model takes operator comfort to a whole new level. We built our system to withstand harsh weather conditions. Our system may heat or cool itself depending on the weather. Even in the worst of circumstances, get things done.

Freq. range (GHZ)

2.2 -2.7

Battery up to

5 h

Range up to

10 km

weather resistance

IP44

Specifications
Top Features
Resources
AtlasSTATION PRO
Dimensions: 340.4 x 235.6 x 55 mm
Screen: 11-inch, 2388 x 1668 at 264 ppi,  Multi-Touch
Controls: Physical control sticks and thumbwheels, Multi-Touch screen
Operating Frequency: 2.2 - 2.7 GHz
Transmit power: Up to 1W (30dBm)
Data Encryption: WPA3 SAE (CCMP)
Antenna: 5 dBi, 2x2 MIMO
Max Transmitting Distance(unobstructed, free of interference): Up to 10 km LOS
Wireless Connection: 802.11 a/b/g/n, 5 GHz, 150 mbit/s, WPA2
Wired Connection: 1 x 100 Base-T Ethernet port (RJ-45), supports passive PoE
I/O Ports: 1 x RJ45, 1 x HDMI (TYPE A), 1 x USB (TYPE A) 2 x SMA female
Ingress Protection Rating: IP44
Charger: Charging device 100-240V 50-60Hz,. DC Barrel Jack 14-30V, 50W max
Battery: 10000 mAh 3.7V (37Wh) lithium-polymer battery
Operating Temperature Range (optional): -20°C to +55°C (-30°C +50°C)
Storage Temperature: -20°C to 45°C up to 3 months25 +/-3°C more than 3 months
Built-in Heater: Up to 50 W of heat
Cooling: Active
Battery Life: 5 hours
Supported Aircraft Models: AtlasPRO
Weight: 2010 g

Video and Control Transmission System: Mesh V2.0
Live View Quality: Up to HD 1080i
Latency (depending on environmental condition): 200 ms

All product specifications are subject to change without notice
Hall-effect Joysticks
Built-in heating
& COOLING
USB3.0
ETH
HDMI
Up to 10km range
waterproof
STANAG 4609 Compliant
AtlasSTATION Specification
DOWNLOAD

AtlasAPP

AtlasAPP is aviation grade software that automates processes. We've worked hard to make it as easy as possible so that the operator may focus on the task rather than on intricate functions. Create complex missions in minutes or launch missions that have already been planned, utilize elevation maps to avoid unnecessary mishaps, and much more.

advanced waypoints
point of interest
target orbit

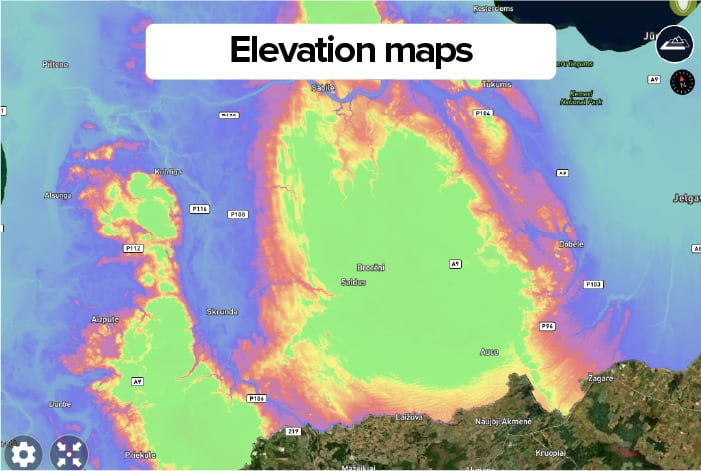

elevation maps
custom maps
pre-planned missions
grid mapping
geofence
thermal inspections
hazard detection
emi countermeasures
dynamic landing point
