AtlasORTUS COMING SOON
Contact sales
Dual camera payload

AtlasORTUS

64 MP day. VGA thermal. Laser ranging.

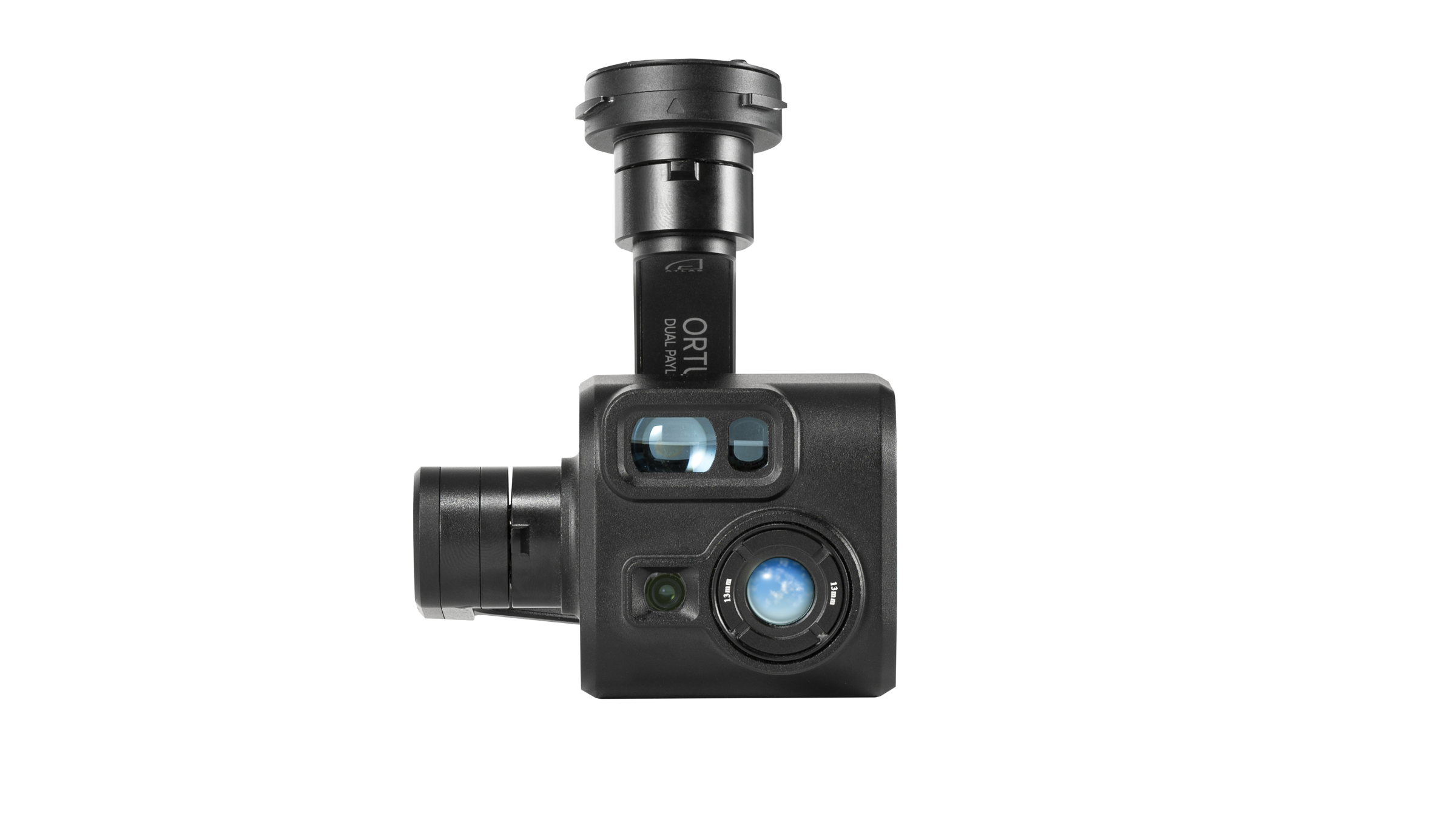

AtlasORTUS dual camera payload
64 MP
Day / low-light sensor
640 × 512
Thermal at 50 fps
2 km
Laser rangefinder
220 g
Weight

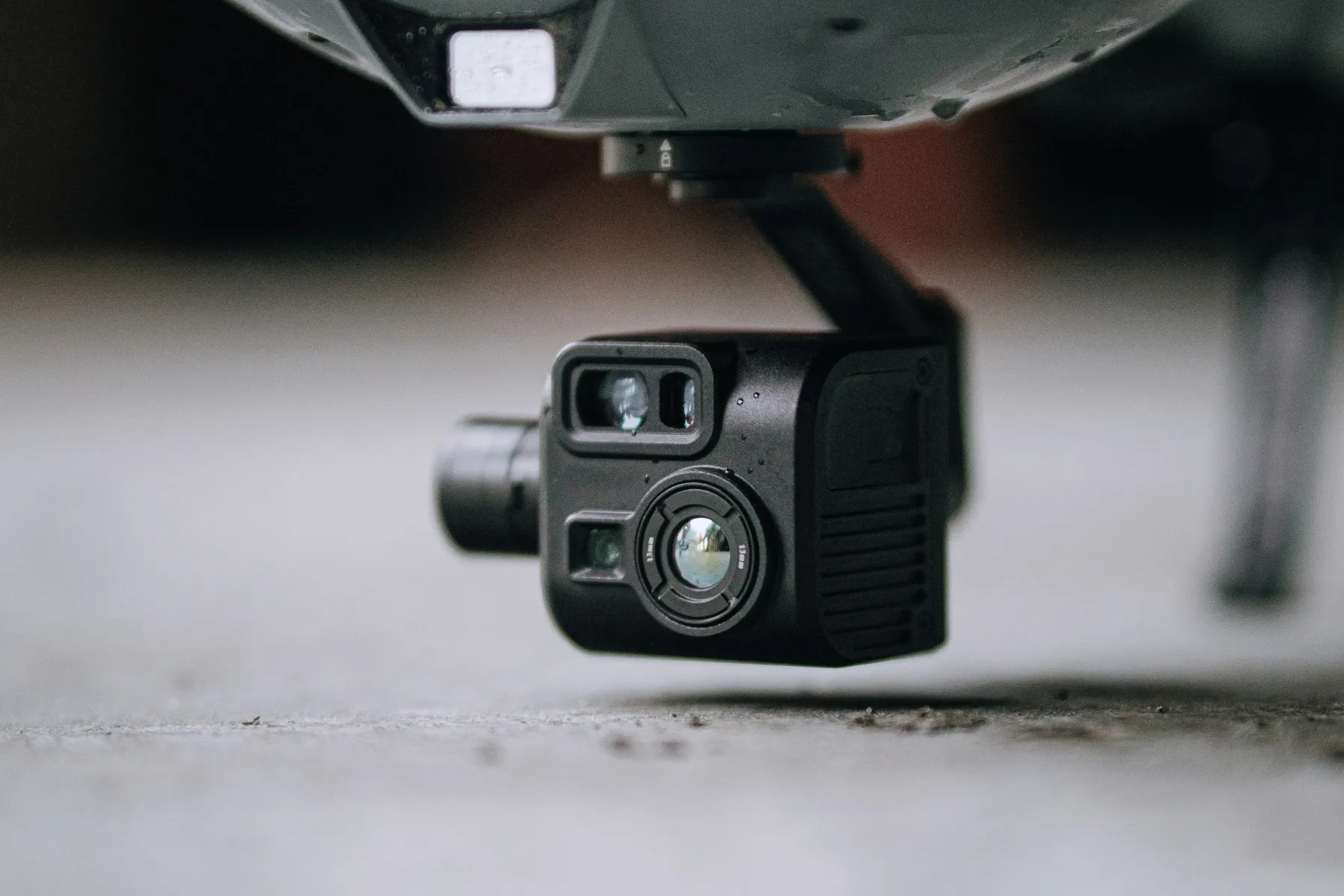

AtlasORTUS day camera footage
02Day and low-light camera

Detail you can zoom into.

A 64 MP sensor with a bright f/1.79 lens records 4K at 60 fps or Full HD at 120 fps, and stays usable as the light fades.

Sensor64 MP 1/2″ CMOS
Video4K at 60 fps, FHD at 120 fps
Photo9248 × 6944
Field of view / zoom67° × 53° / 8× digital
AtlasORTUS thermal footage
03Thermal camera

See heat, not just light.

An uncooled VOx sensor with an f/1.0 lens and ≤50 mK sensitivity picks out people and vehicles at night, through smoke and in low contrast.

SensorVOx uncooled IRFPA
Resolution640 × 512 at 50 fps
NETD≤50 mK at 25 °C
Spectral range8–14 μm

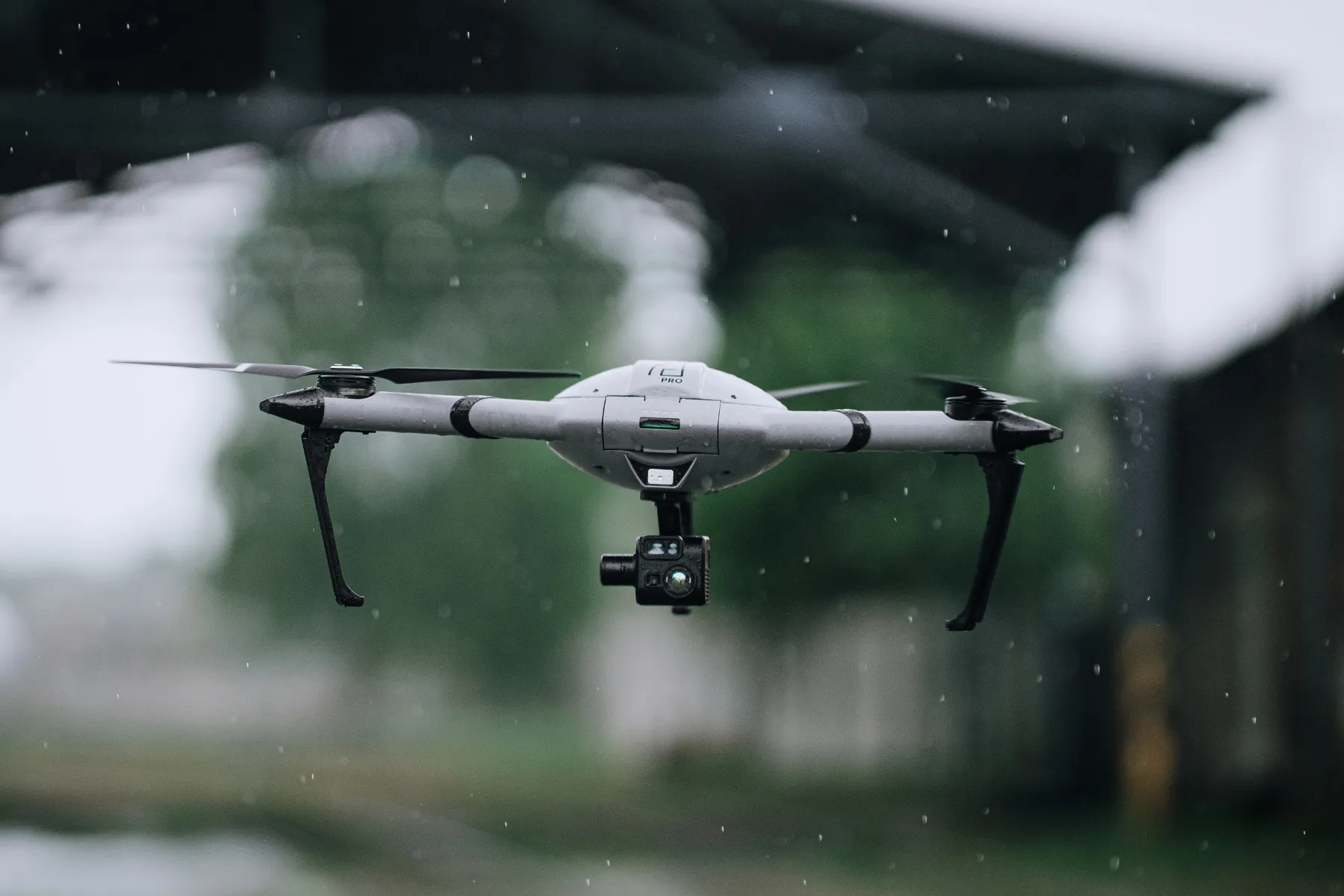

AtlasORTUS laser rangefinder
04Laser rangefinder

Know exactly how far.

A built-in laser rangefinder measures distance to the target from 5 m to 2 km with ±1 m accuracy, and every frame carries STANAG 4609 metadata.

Range5 – 2000 m
Accuracy±1 m
Update rate1 – 4 Hz
Wavelength905 nm
05Detection and recognition

Recognise at a distance.

Vehicle, optical
1.8 km
Vehicle, thermal
1.5 km
Human, optical
0.85 km
Human, thermal
0.8 km
06Specifications

Key specifications

Full specifications in the datasheet
220 g
Weight
64 MP, 4K60
Day / low-light camera
640 × 512
Thermal, ≤50 mK
AES-256
Encrypted recording
−20 to +60 °C
Operating temperature
2 km
Laser rangefinder

Want to understand if AtlasORTUS is the perfect fit for your requirements?

Our team will walk you through the full specification and match it to your mission.

Contact us

Listed specifications are subject to change without prior notification.

07Datasheet and brochure

Add AtlasORTUS to your fleet

Talk to our team about pricing and availability.
