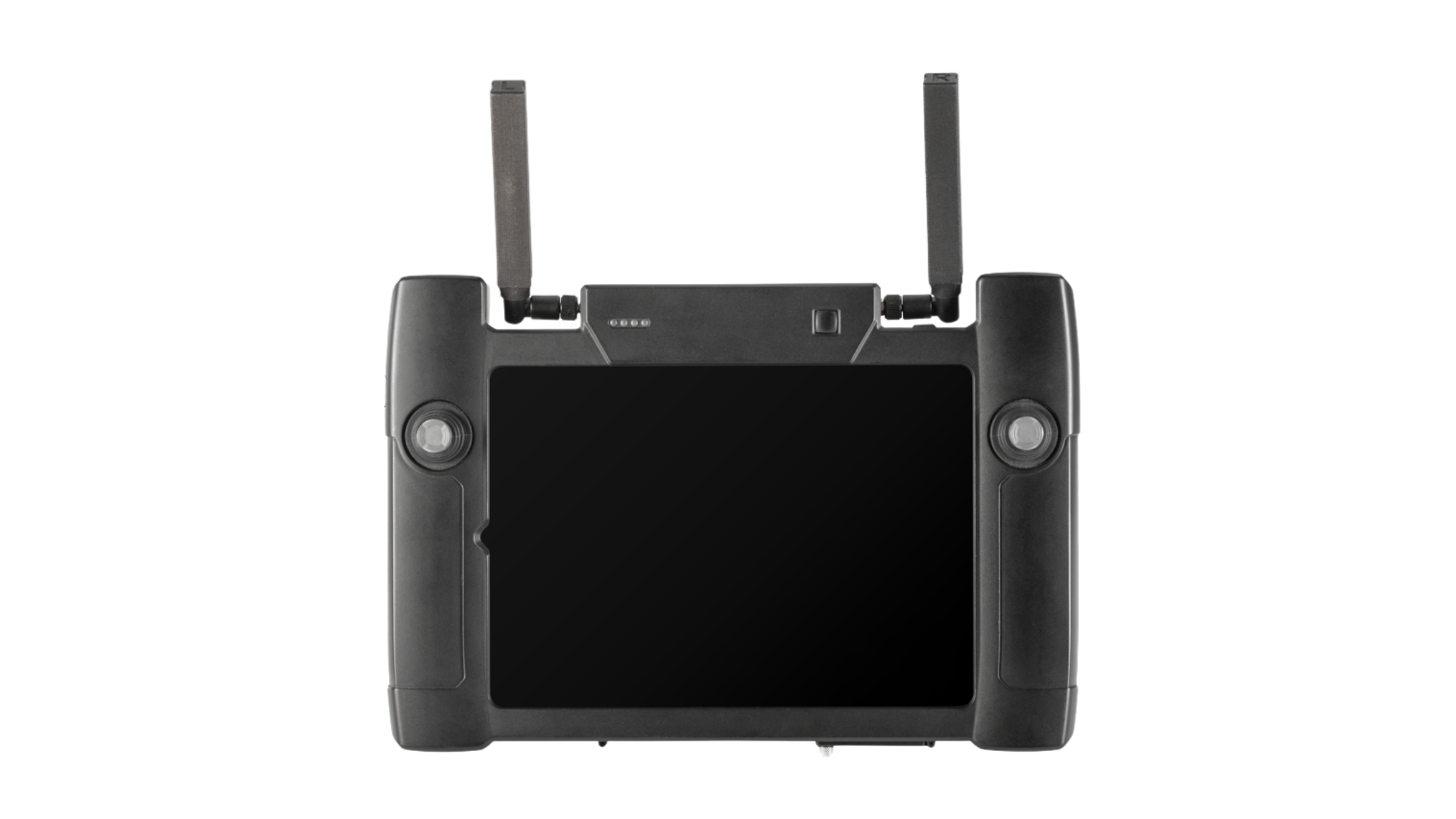

A large, sharp touchscreen gives room for the live video, the map and the mission plan at the same time.
Screen11-inch, 2388 × 1668, 264 ppi
Brightness1000 nits
ControlsMulti-touch screen
03Missions

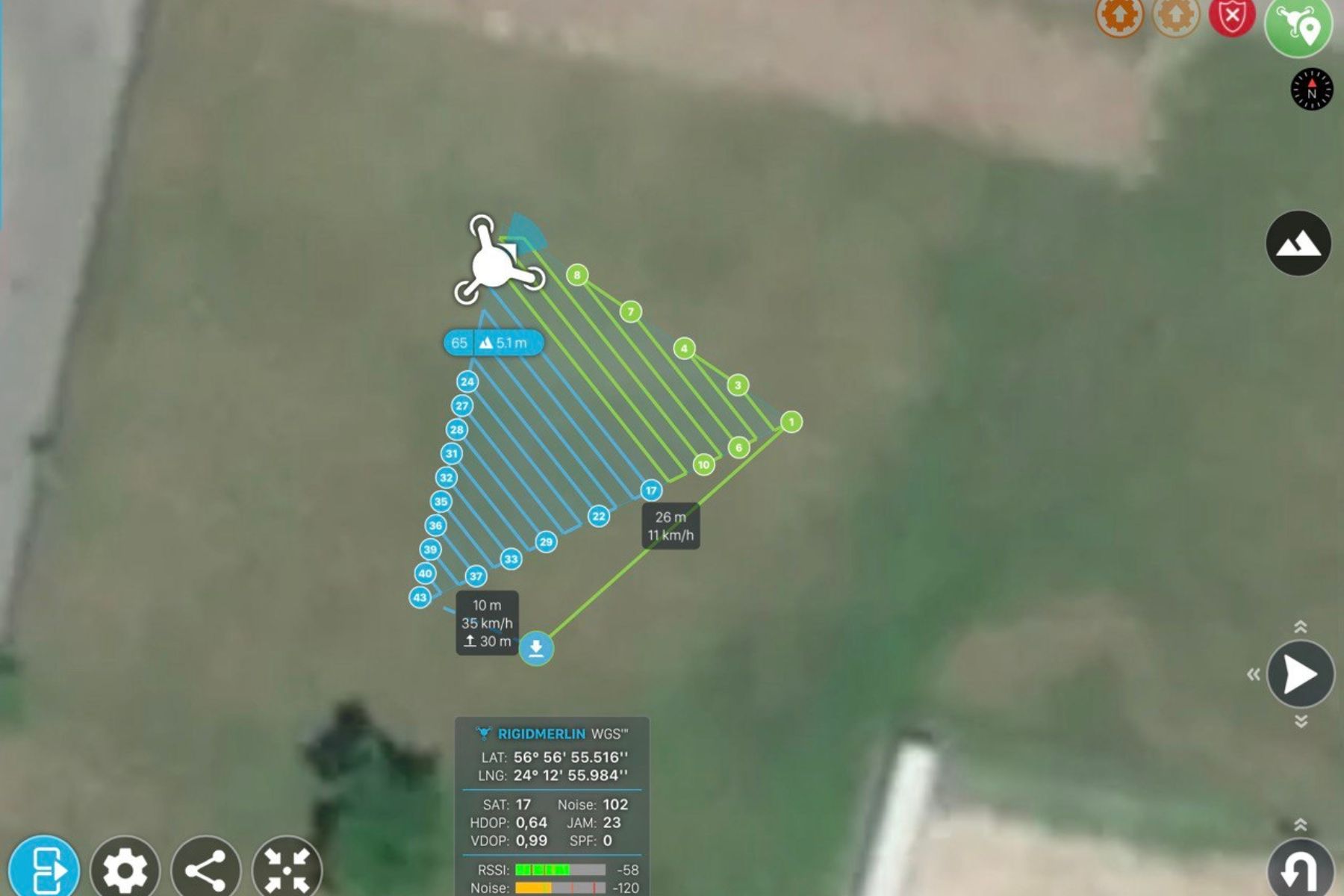

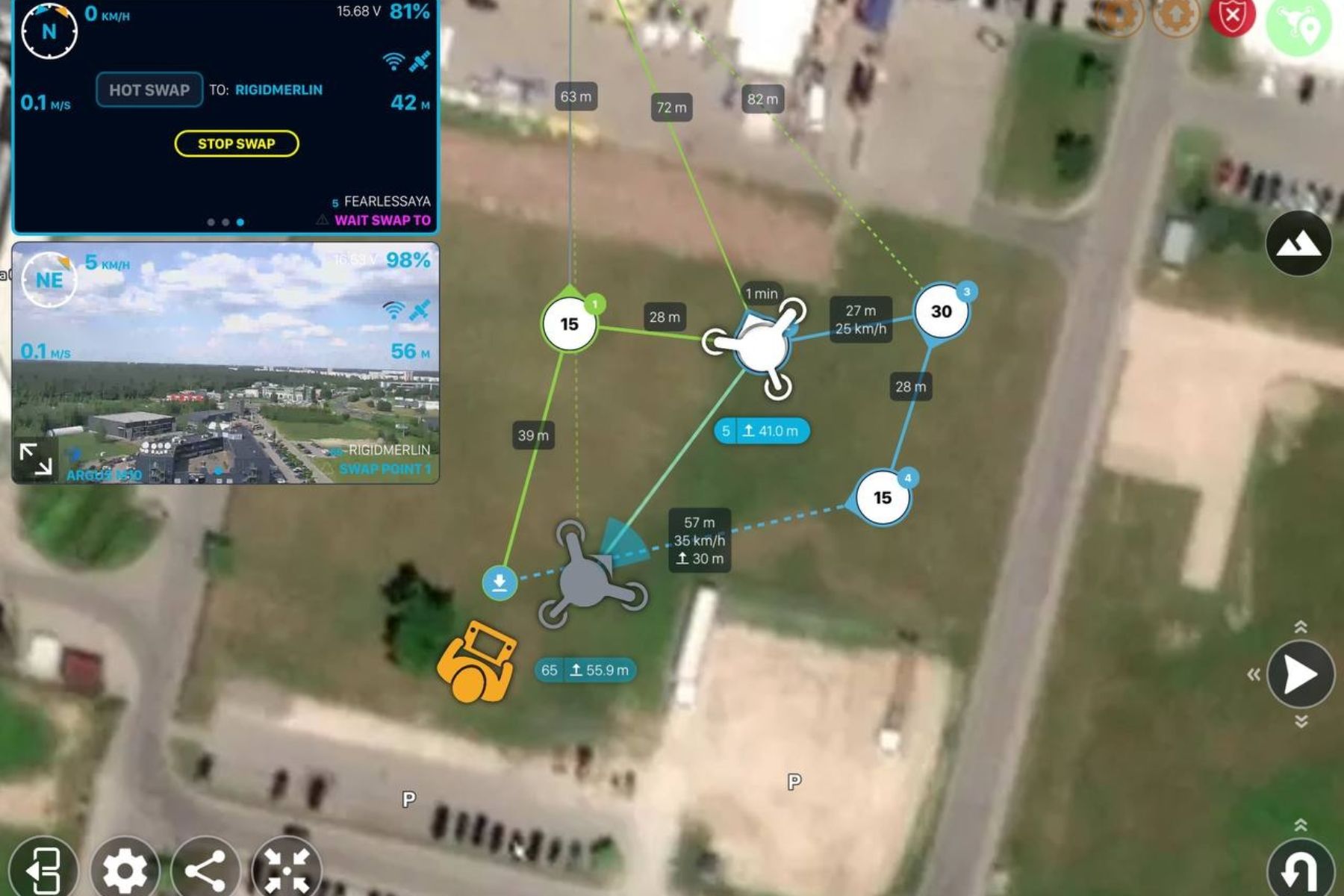

Autonomous missions made simple.
Create missions, set routes and adjust them in flight. Control AtlasMICRO, AtlasPRO, AtlasROVER and AtlasNEST from one station, and manage data, video and third-party integrations.
A 1 W radio with 2×2 MIMO antennas reaches up to 10 km line of sight on the Atlas mesh network, with Ethernet, HDMI and USB for everything else on the ground.
Frequency2.2 – 2.7 GHz, up to 1 W
EncryptionWPA3 SAE (CCMP)
Live view1080p30 / 720p60, ~200 ms latency
I/ORJ45 (PoE), HDMI, USB, 2 × SMA
05Built for the field
Waterproof. Heated. Ready.
Ingress protection
IP54 certified (IEC 60529)
Operating temperature
−20 °C to +55 °C
Built-in heater
Up to 50 W
Battery life
2.5 h flight / 5 h planning
06Specifications
Key specifications
Full specifications in the datasheet
11-inch, 1000 nits
Screen
Up to 10 km
Radio range (LOS)
2.5 h
Battery life in flight
1734 g
Weight
IP54
Certified (IEC 60529)
−20 to +55 °C
Operating temperature
Want to understand if AtlasSTATIONPRO is the perfect fit for your requirements?
Our team will walk you through the full specification and match it to your mission.
