AtlasULTRA
Request a demo
Ground control station

AtlasULTRA

Control everything. Every time. Everywhere.

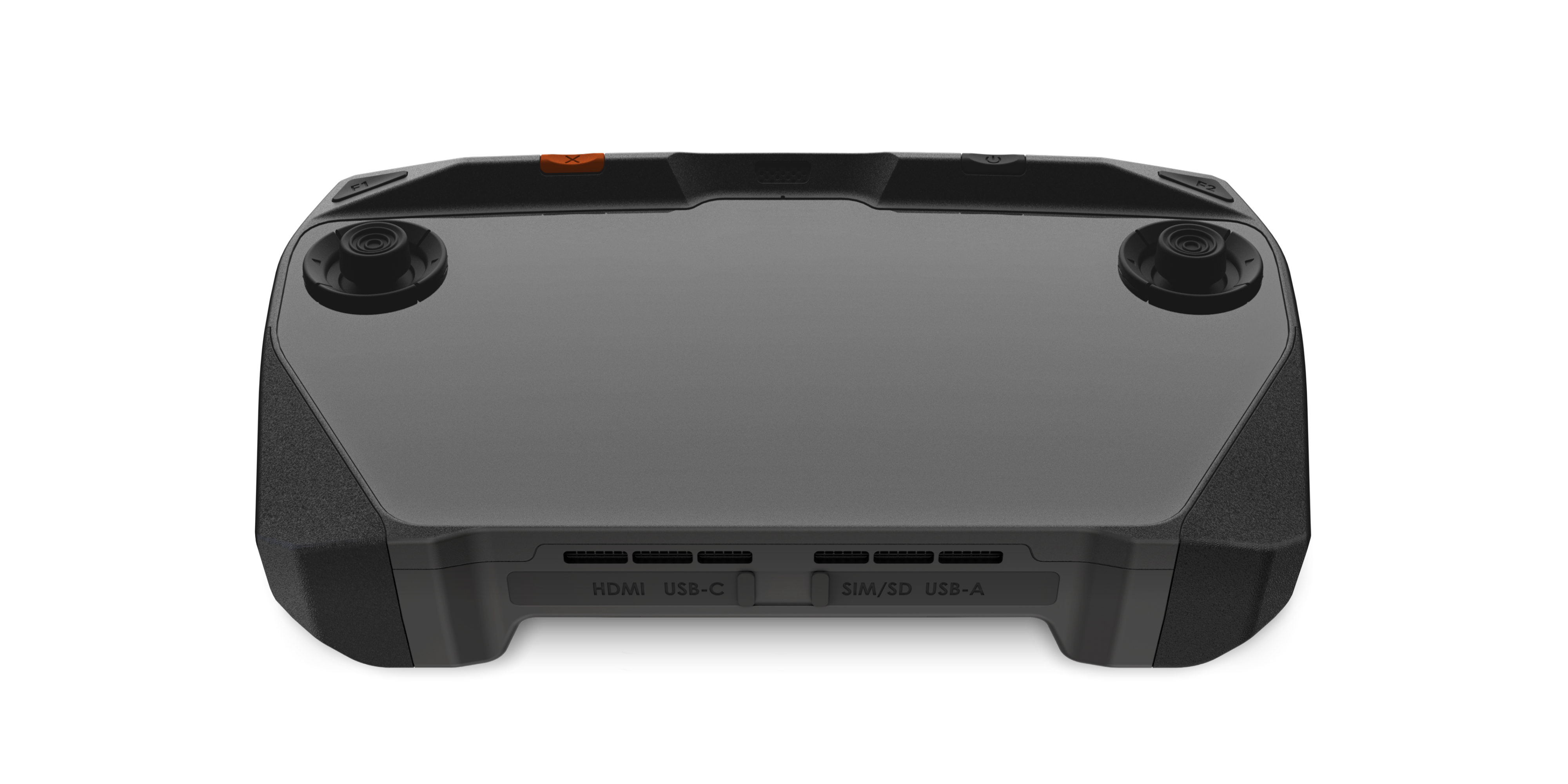

AtlasULTRA ground control station
7″
1750-nit display
10.5 km
Radio range
4.5 h
Runtime
IP54
Ingress protection (designed as)
1320 g
Weight

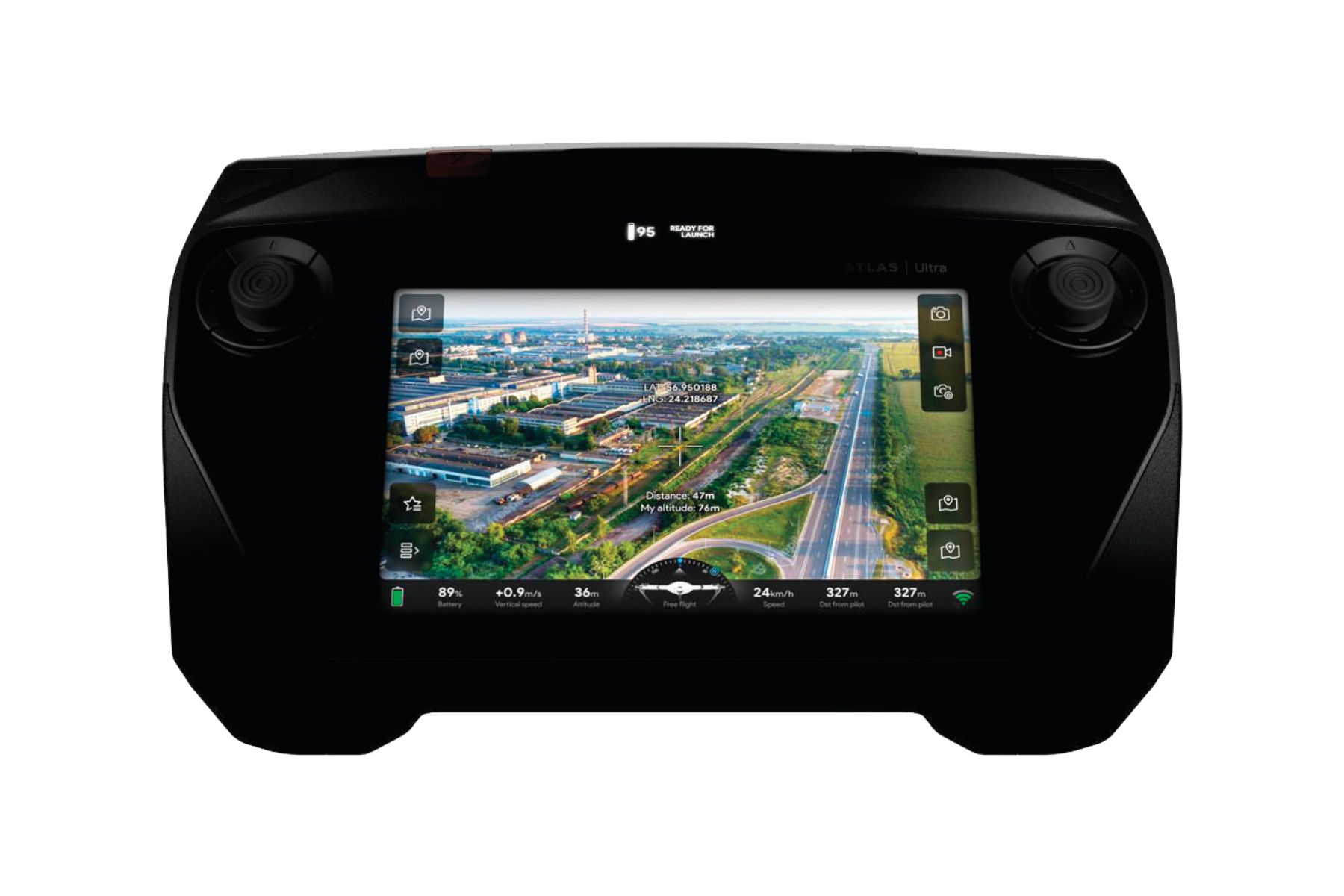

AtlasULTRA display
02Screen

Crystal-clear video. Day or night.

A 7-inch, 1750-nit display with full panel lamination and an ambient light sensor stays readable even in the brightest midday sun.

Display7-inch capacitive multi-touch, IPS
Resolution1920 × 1200 (16:10)
Brightness1750 nits
Cover glass5.5 Mohs hardness

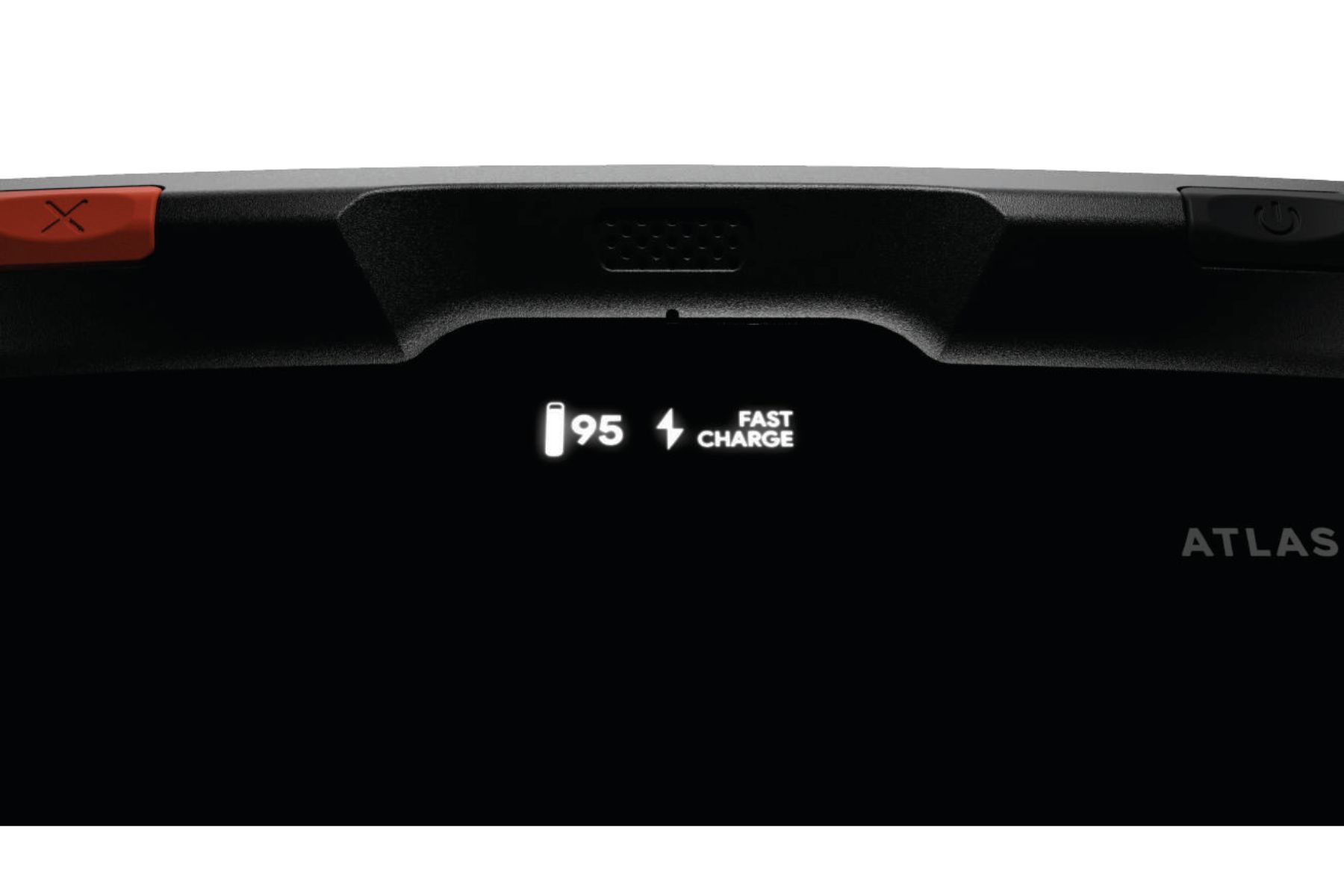

AtlasULTRA status display
03Status display

All essentials at a glance.

A separate OLED status screen shows the operator the parameters that matter most, such as battery charge and signal strength, without leaving the mission view.

Secondary screen1.04-inch OLED

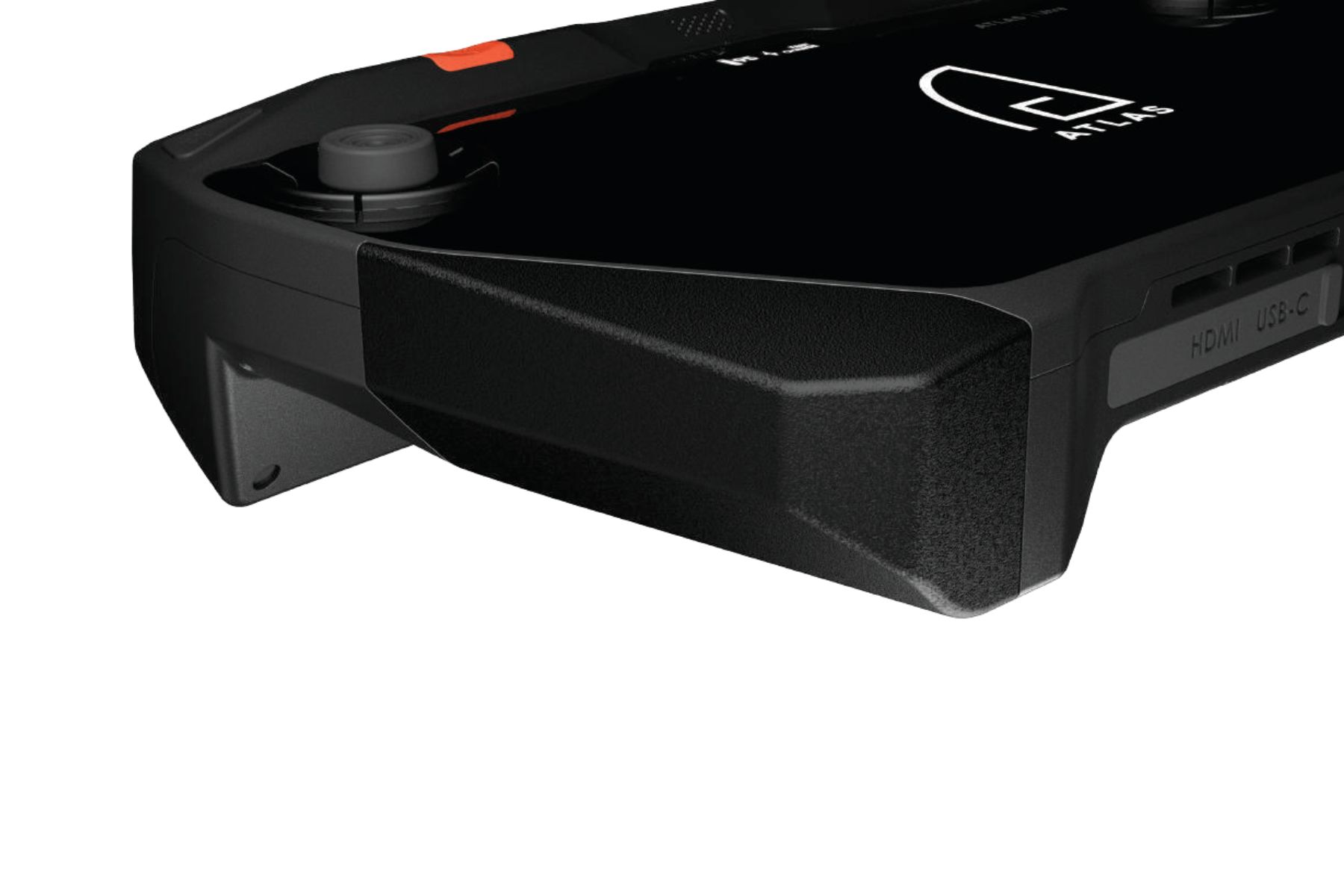

AtlasULTRA rugged enclosure
04Durability

Built to endure and to last.

An impact-resistant, flame-retardant enclosure with a central thermal core, three variable-speed fans and built-in heating keeps AtlasULTRA working from −20 °C to +55 °C.

EnclosurePC-ABS, UL94V-0
Ingress protectionDesigned as IP54
Operating temperature−20 °C to +55 °C
Built-in heatingWarm-up in 15 min at −20 °C

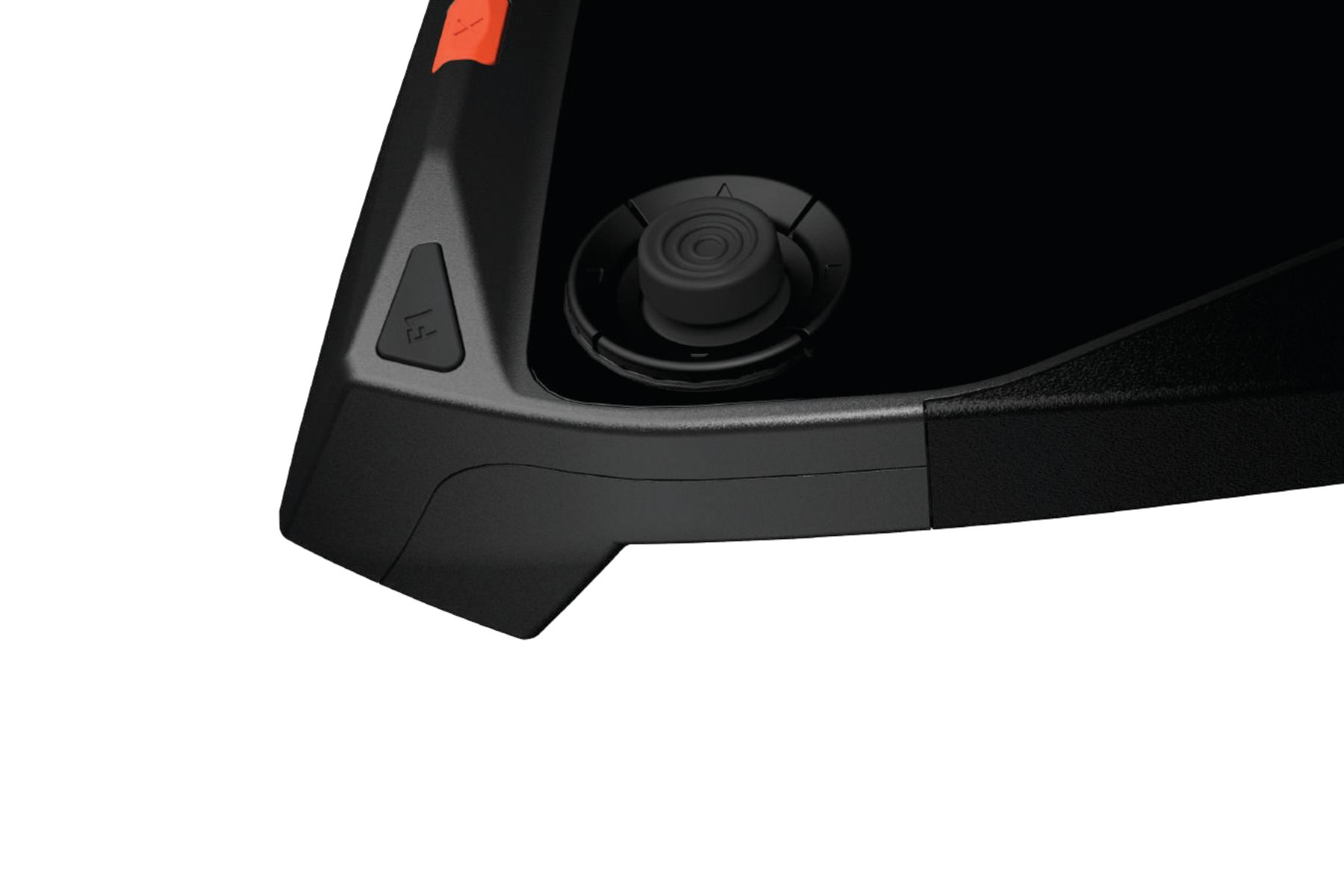

AtlasULTRA controls
05Ergonomics

Experience the ergonomics.

Drift-free hall-effect thumbsticks, dual trigger wheels, 11 customisable buttons and dual haptic motors help the operator react faster and more accurately when it counts.

ThumbsticksDual drift-free hall effect
Quick-access buttons11, customisable
Haptic feedbackDual independent motors
Kill-switchDedicated button + interlock

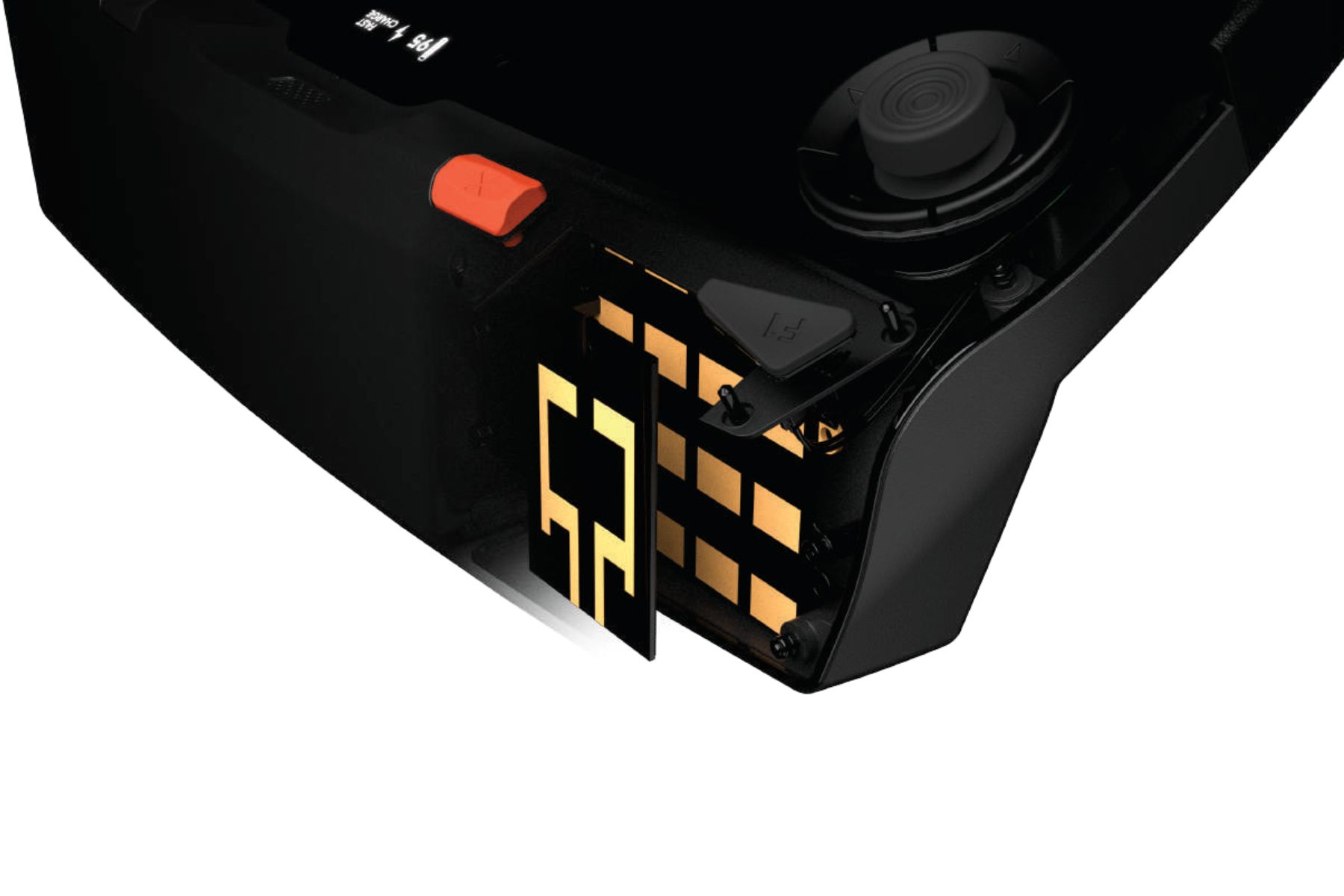

AtlasULTRA radio and antenna
06Radio

Powerful, secure radio for ultimate range.

The dual-chain Atlas ATR-200 radio with frequency hopping and a smart-reflector antenna reaches up to 10.5 km. An SMB connector accepts external high-gain antennas for even more range.

Primary radioAtlas ATR-200, dual chain 2 × 1 W
Frequency range2.2 – 2.7 GHz, frequency hopping
Radio rangeUp to 10.5 km, internal antenna
External antennaSMB connector

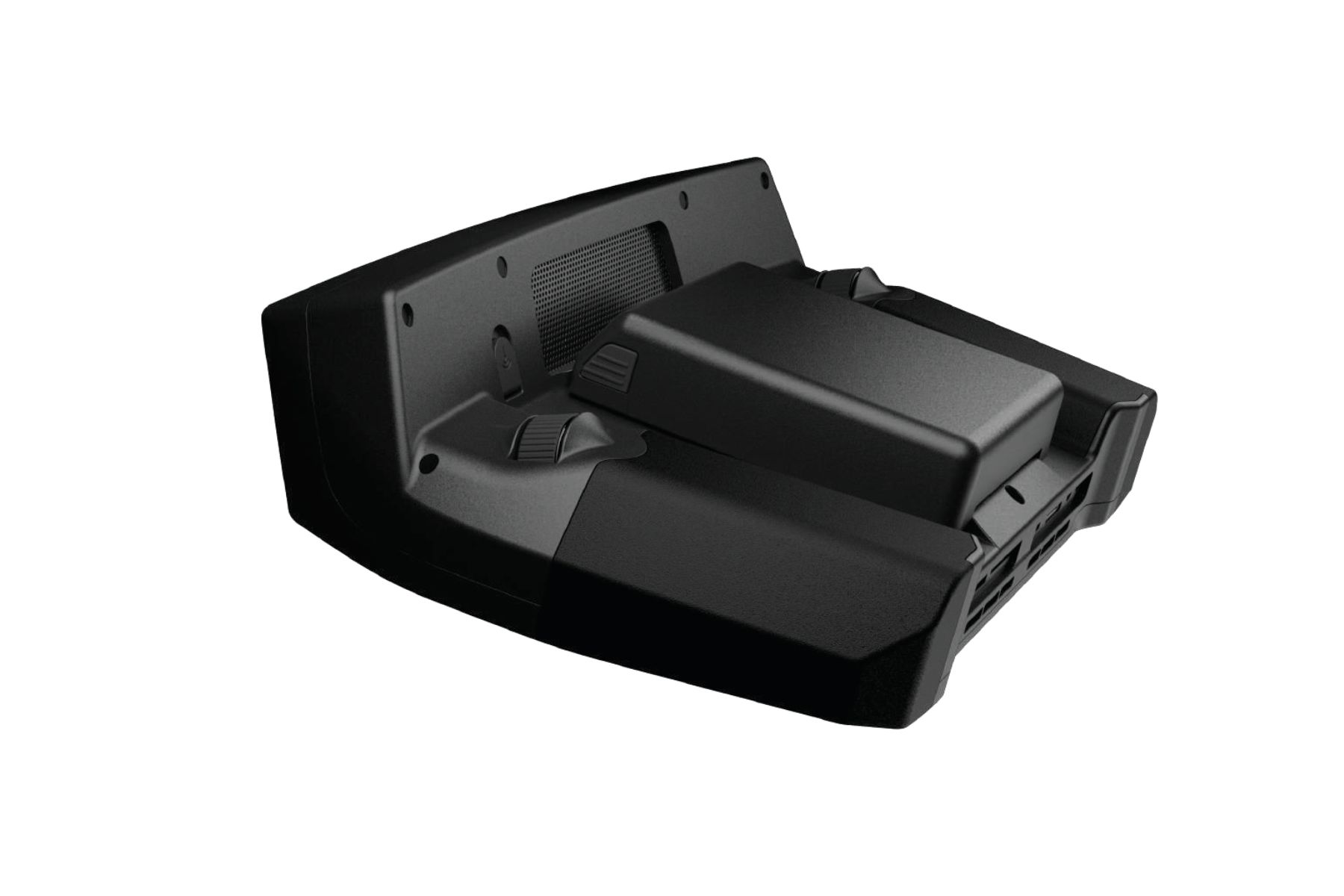

AtlasULTRA rear module bay
07Modular accessory bay

Expand the functionality.

The rear-mounted AtlasHUB bay takes snap-in modules: an extended battery for four more hours, Ethernet, SFP fibre optics or a MIL port replicator.

PowerExtended battery (+4 h)
ConnectivityEthernet, SFP fibre modules
Port expansionMIL port replicator

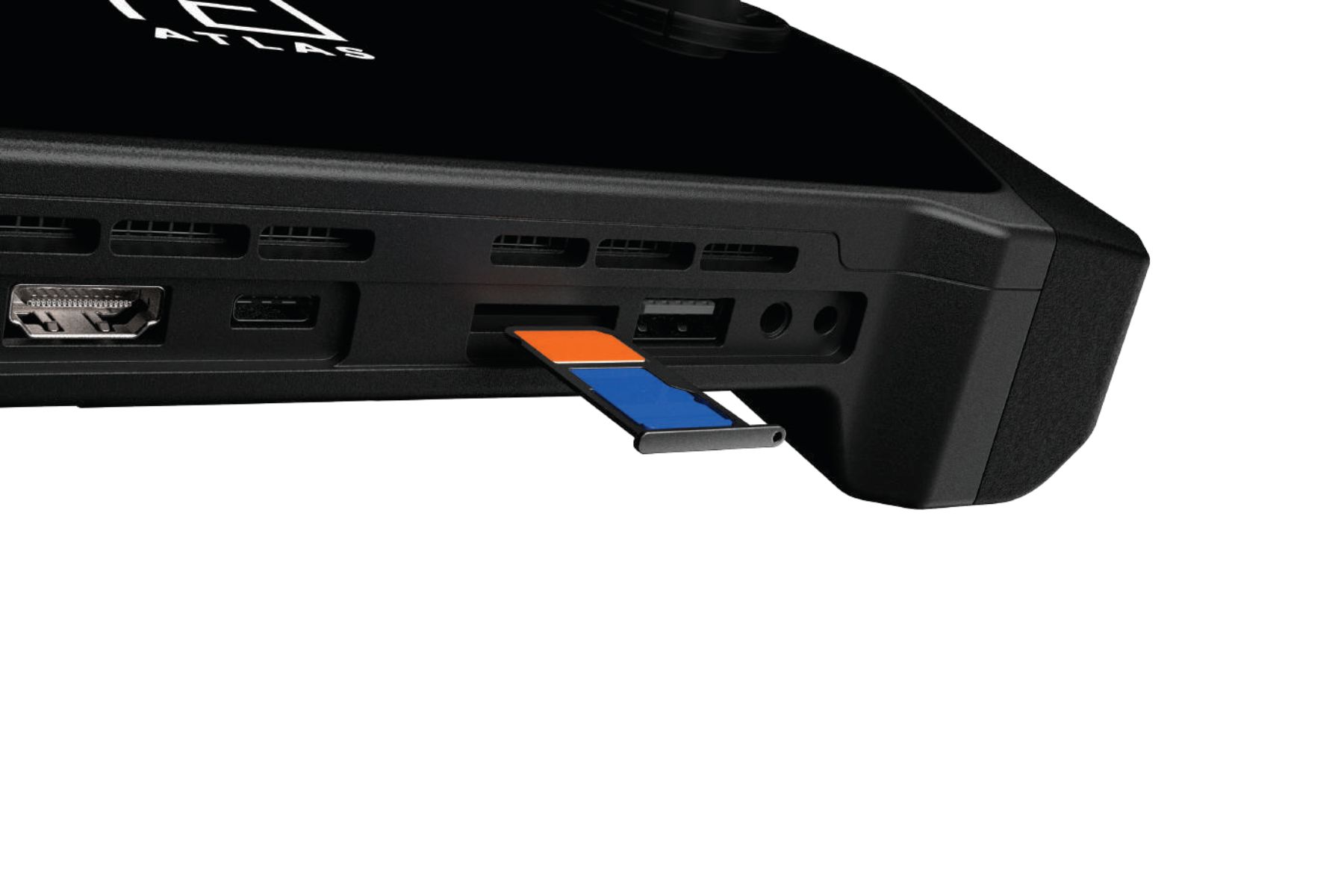

AtlasULTRA
08Processing and storage

Secure storage. Lots of it.

An octa-core processor with hardware video encoding, 128 GB of built-in storage and a microSDXC slot for up to 2 TB keep every mission recorded.

CPU / RAMOcta-core MT8395 SoC, 8 GB
Storage128 GB UFS + microSDXC up to 2 TB
VideoH.264 / H.265 encode and decode
Operating systemLinux, optional Android 13

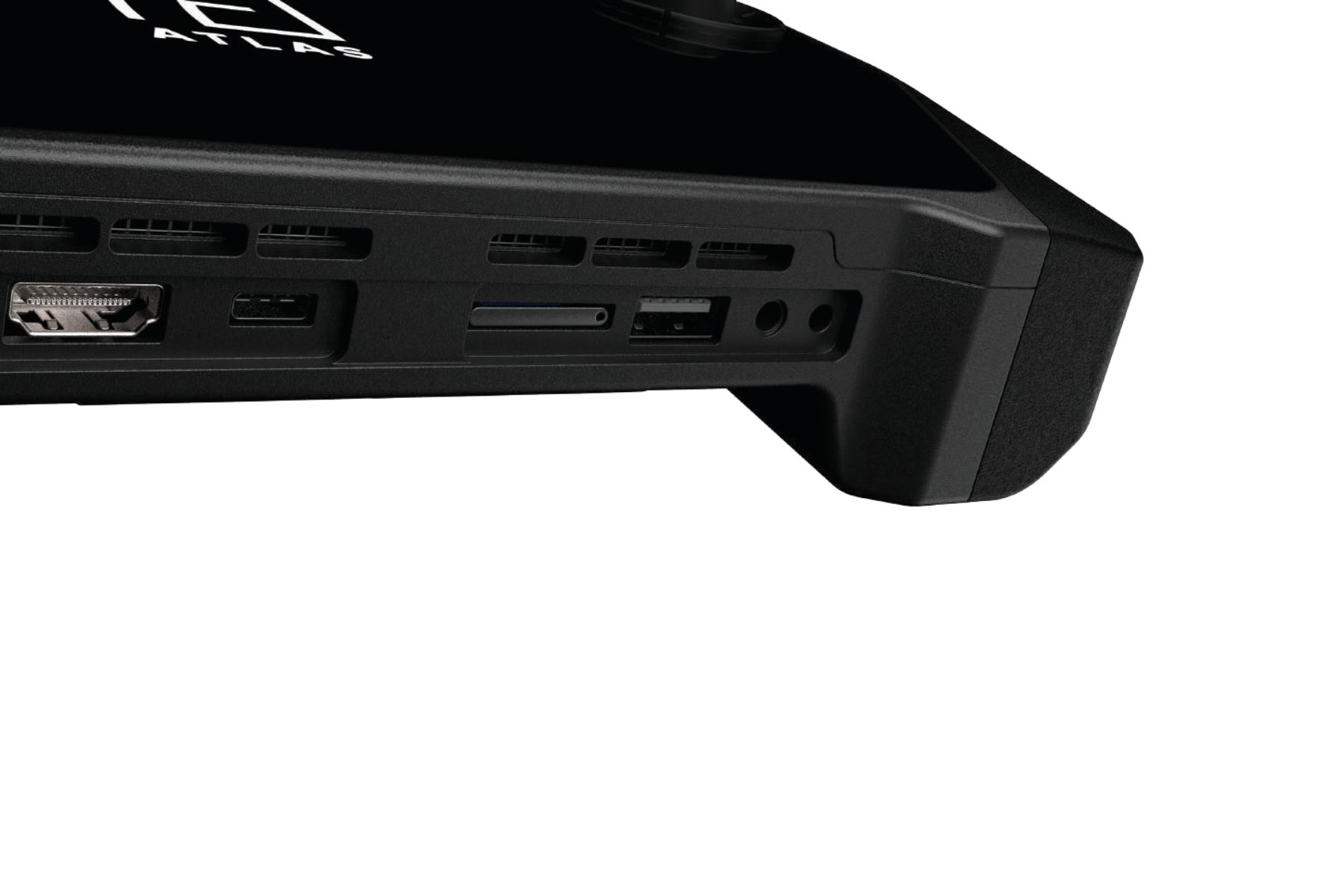

AtlasULTRA connectivity
09Connectivity

Connected everywhere.

An optional 4G/5G modem relays the video stream to the command centre, Wi-Fi and Bluetooth connect nearby devices, and HDMI drives a 4K external display.

Mobile dataOptional 4G / 5G modem
WirelessWi-Fi 802.11 a/b/g/n, Bluetooth 4.2
PortsUSB-C, USB-A 3.0, HDMI 2.0 (4K60)
Storage and SIMNanoSIM / microSDXC combo tray
10Built for the field

Ready for a full shift outdoors.

Ingress protection
Designed as IP54
Operating temperature
−20 °C to +55 °C
Runtime
4.5 h (+4 h extended battery)
Weight
1320 g
11Specifications

Key specifications

Full specifications in the datasheet
7-inch, 1750 nits
Display
Up to 10.5 km
Radio range
4.5 h
Runtime
1320 g
Weight
IP54
Ingress protection (designed as)
−20 to +55 °C
Operating temperature

Want to understand if AtlasULTRA is the perfect fit for your requirements?

Our team will walk you through the full specification and match it to your mission.

Contact us

Listed specifications are for the pre-production model and subject to change.

12Datasheet and brochure

Take control with AtlasULTRA

Book a live demonstration or talk to our team about pricing and availability.
