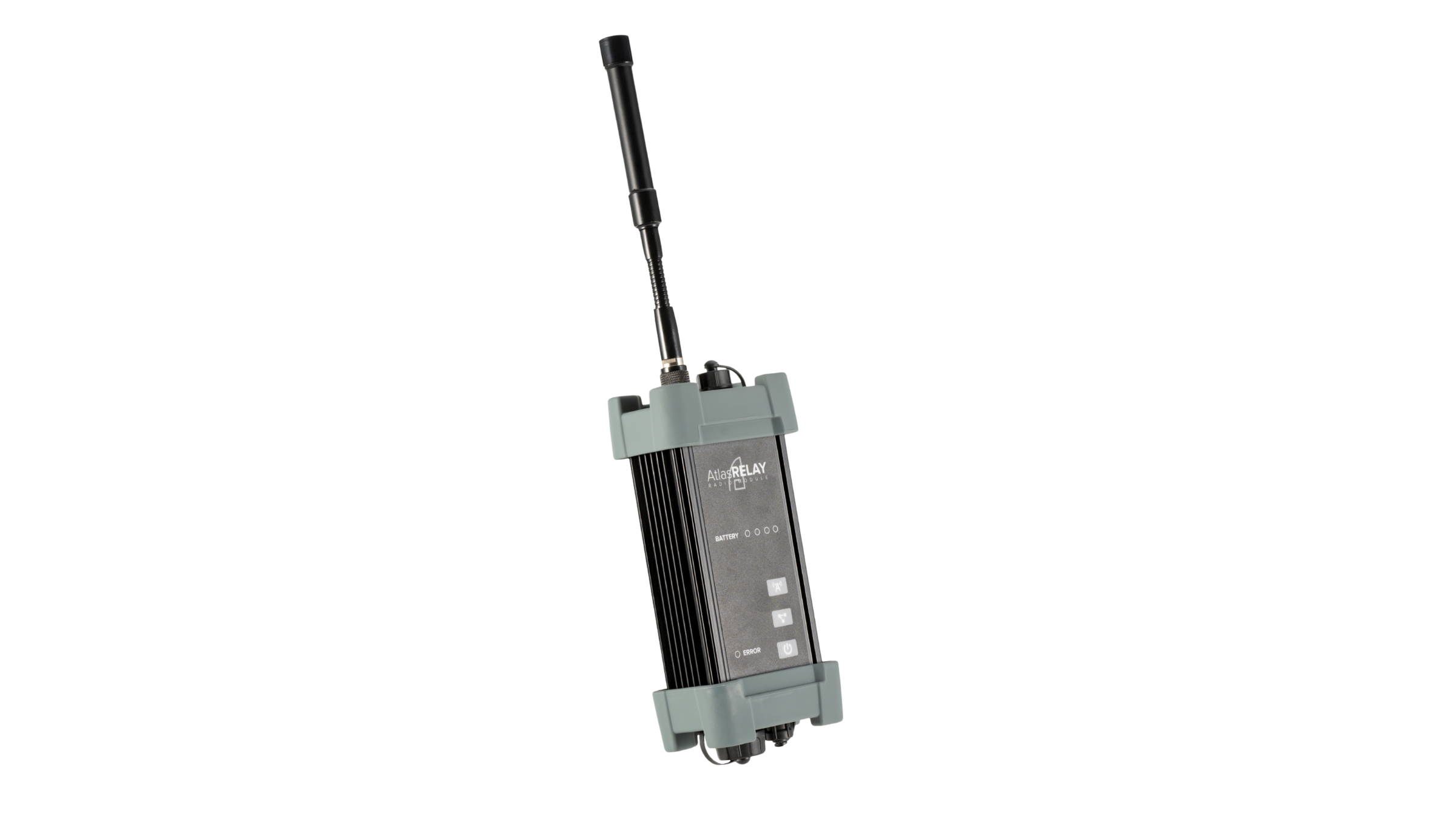

Placed between the drone and the operator, AtlasRELAY extends the link to UAVs flying behind obstacles and increases coverage and capacity between AtlasPRO and the ground control station.
Max distanceUp to 10 km LOS
Frequency2.2 – 2.7 GHz
SecurityEncryption, frequency hopping, mesh

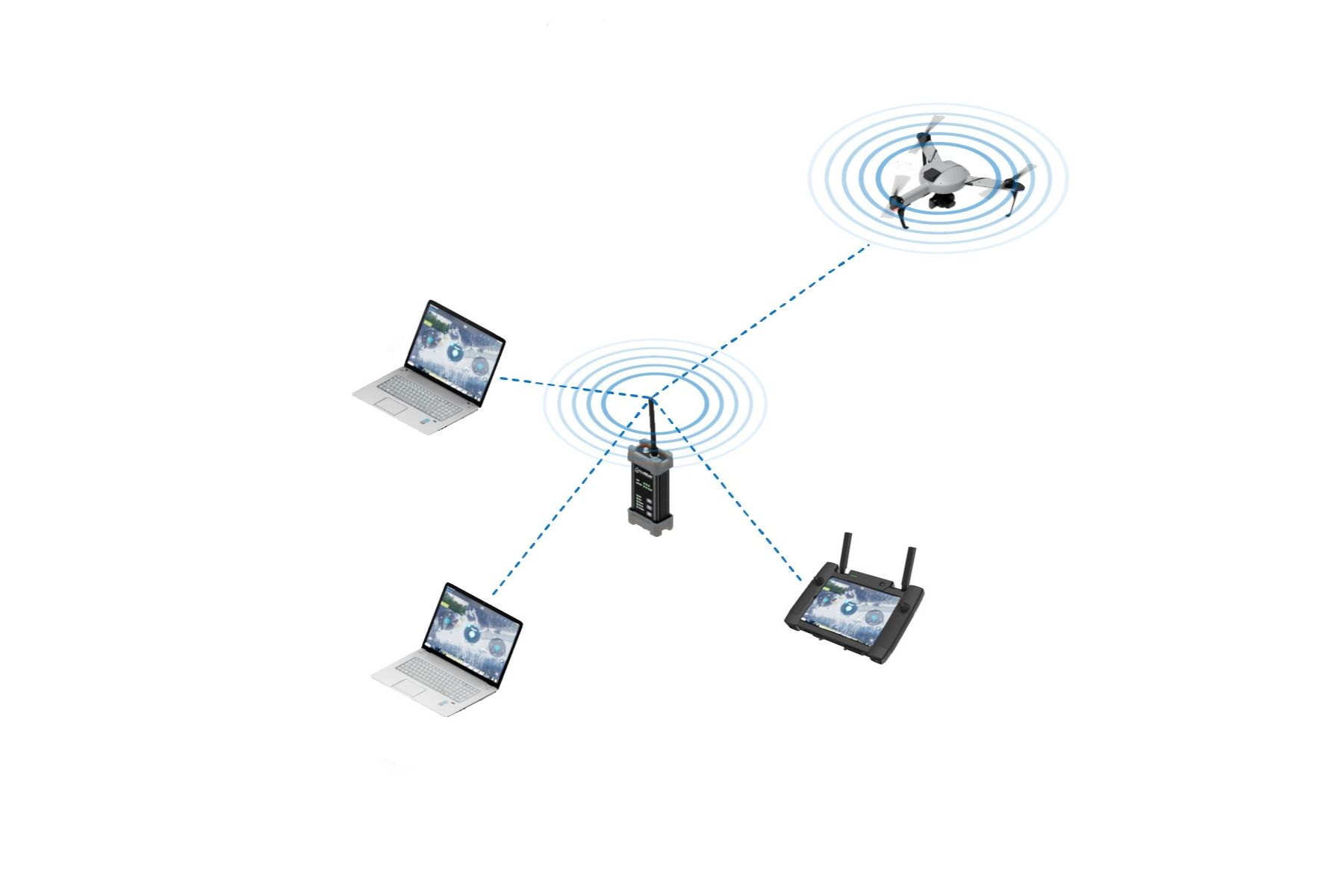

03Video sharing
One feed. Many screens.
Part of the Atlas mesh network, AtlasRELAY sends live video from the aircraft to the control station and to other devices on the network over 5 GHz Wi-Fi or Ethernet.
Wireless802.11 a/b/g/n, 5 GHz, 150 Mbit/s
Wired100Base-T Ethernet, passive PoE
EncryptionWPA3 SAE (CCMP)
04Rugged
Fits the palm. Takes the knocks.
A robust, impact-resistant body, small size and up to 8 hours of battery make it an ideal tool for long outdoor operations.
Dimensions87.5 × 188 × 53.5 mm
Weight800 g
Ingress protectionIP54 certified (IEC 60529)
Battery life5–8 hours
05Built for the field
Set it down. Forget about it.
Ingress protection
IP54 certified (IEC 60529)
Operating temperature
−20 °C to +55 °C
Battery life
5–8 hours
Weight
800 g
06Specifications
Key specifications
From the current website — to be confirmed against the latest datasheet
Up to 10 km
Radio range (LOS)
5–8 h
Battery life
800 g
Weight
IP54
Certified (IEC 60529)
−20 to +55 °C
Operating temperature
87.5 × 188 × 53.5 mm
Dimensions
Want to understand if AtlasRELAY is the perfect fit for your requirements?
Our team will walk you through the full specification and match it to your mission.
